Cortex Security with AI Professional Surveillance

COR-ACC1000:

Multi-Door Network Control Panel

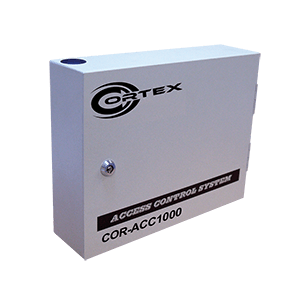

The COR-ACC1000 is a sophisticated, compact wall-mounted IP-addressable door controller with a metal cabinet and a lockable door. It includes an on-board network interface and can support up to 12 proximity card readers.

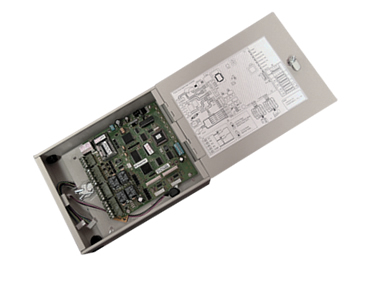

The COR-ACC1000 can be linked to up to 254 other door controllers (other COR-ACC1000 models) to provide support for large and expanding installations. A wiring diagram is attached to the inside of the door and two keys are provided for security. A UPS port and function supports a rechargeable battery (not included) so the controller can be configured to continue working in the event of power failure.

Expansion Board Available

Add more with The COR-1010 expansion board and control up to 8 more doors.

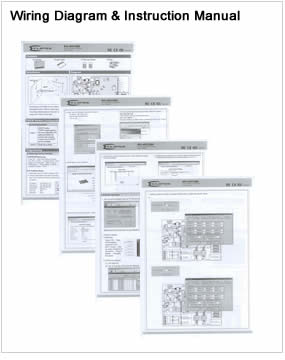

ACC1010 expansion board Wiring diagram and instruction manual for ACC1000

Need Software?

Use the handy links below if you need software for this product.

701Client Software

701Server Software

  • Control up to 12 doors (up to 20 by adding an COR-1010 expansion board)
  • Compact design
  • On-board network interface
  • Built-in UPS function with/rechargeable battery support
  • Supports 15,000 users
  • Programmable card expiration supported
  • 11,000 event memory
  • Serial interface: RS485, 9600 baud, N, 8, 13
  • 3 connections, 2 for readers, 1 for PC
  • Anti-pass back supported with COR-ACC900/950/995
  • Auto diagnostic: No user intervention necessary
  • Dynamic door assignment supported
  • Emergency door release supported
  • 2 Wiegand readers supported
  • Scheduled door release supported
  • Anti-pass back supported with COR-ACC900/950/995
  • Auto diagnostic: No user intervention necessary
  • Dynamic door assignment supported
  • Emergency door release supported
  • 2 Wiegand readers supported
  • Scheduled door release supported
  • Scheduled door arming supported
  • 63 Time Zones
  • 255 door groups
  • 120 programmable holidays
  • Request to exit supported
  • Relay inputs: 4 (expandable to 16), 3A
  • Relay outputs: 4 (expandable to 16), 3A
  • Voltage: 9-24VDC variable auto detection
  • Power: 2.5 watts
  • Temperature/humidity: -10 C
  • 50°C (14°F - 122°F) @ 0-90% non-condensing
  • Dimensions: 180mm x 231mm x 62mm (7.09" x 9.09" x 2.44")
  • Optional I/O expansion board available for 8 more door in/door out devices (COR-1010)
