COR-ACC400IL:

This red illuminated button is mounted on a metal plate that can be secured to a wall near the door it effects. The wide operating temperature range makes it suitable for a number of environments.

• Durable stainless steel plate
• 1M cycles min. rated switch life
• Single pole NO/NC momentary contact switch
• 1.2W lamp, 12VDC (60V max.)
• Contact rating: 300VAC/3A max.
• Operation Temperature: -20° C ~ 55° C (-4° F ~ 131° C)
• Dimensions: 120mm x 76.2mm x 82mm (4.72" x 3.00" x 3.23")

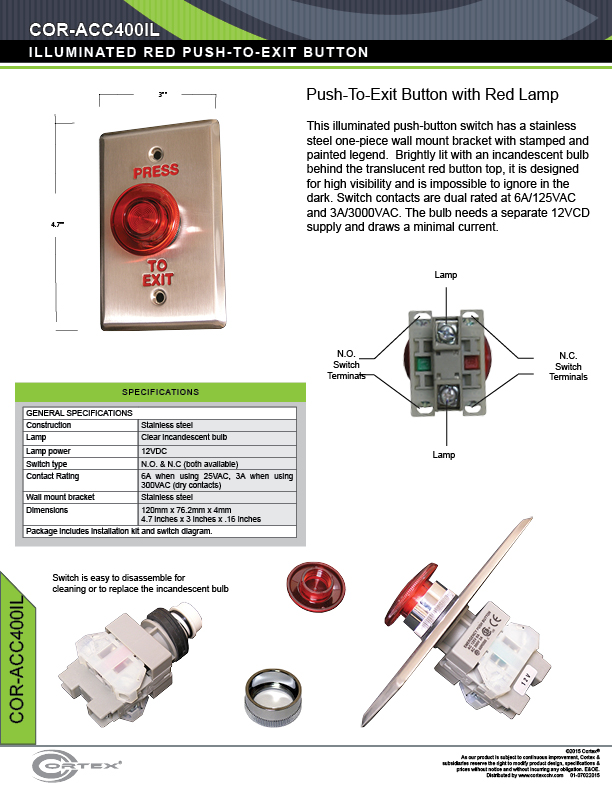

Download the spec sheet Please click the photo below to download the spec sheet
