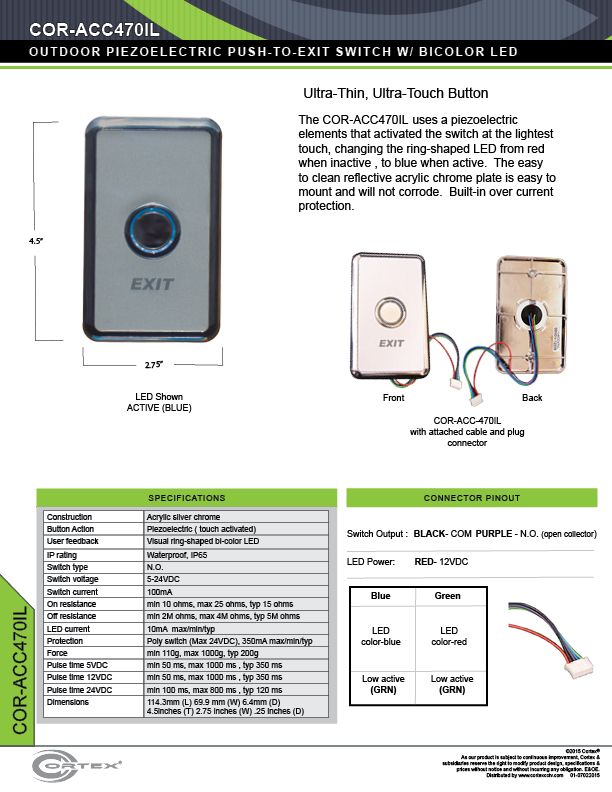

Push To Exit Button with Bi-Color LED
This weatherproof exit button is made of chrome acrylic material and incorporates a ring-shaped LED that can light in RED or BLUE mode (BLUE shown in image at right), or both, under control of an external door control device.
- Ultra-slim design
- Intended for wall surface installation
- Brushed-aluminum look
- Push button N.O. switch
- Waterproof (IP65)
- Built-in over current protection
- Input voltage: 5-24VDC
- Switch current: 100mA
- Pre-wired with 5-conductor connector
- Dimensions: 44.45mm x 82.55mm x 6.35mm (1.75" x 3.25" x 0.25").
