HD-SDI Video Extender with Built in Surge Protection
This HD-SDI UTP transmitter is a long distance transmission device over 2 wire conductor (we recommend CAT5E/CAT6 twisted pair).
This device transmits the HD-SDI signal up to 500ft over 1 pair UTP cable without using a repeater. Comes in a compact size and provides a terminal block for easy installations.
- Power Input DC12V/0.5A
- Power Consumpiton DC12V/1.3W
- Max.T/D:CAT.5e / 150m Full HD: 1.5G)
- Signal Input BNC_M 75ohms
- Signal Output Terminal Block 2P
- Power Input 2.1mm DC plug
- Operating Temperature -10° C - +50° C /
- Humidity 0 - 80%
- Max. Output Current 1000mA

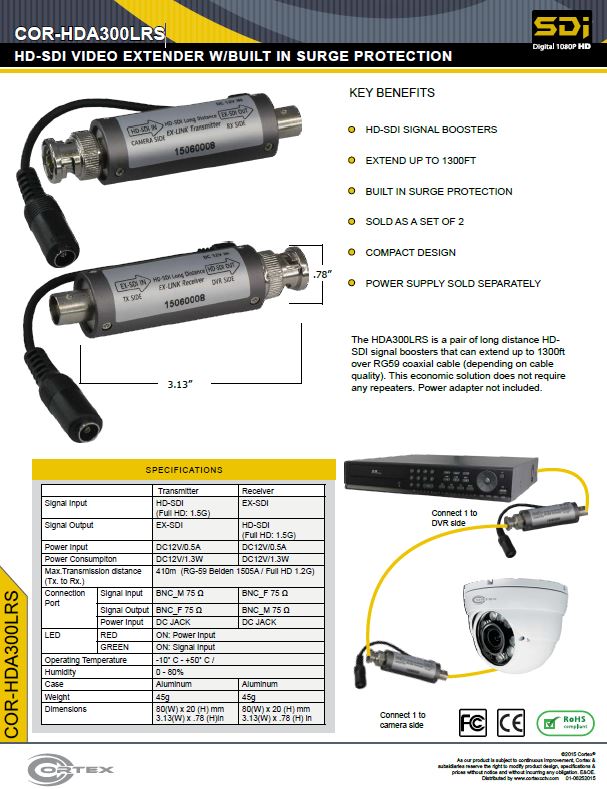

Download a Specification Sheet by clicking the link below.
