Cortex Security with AI Professional Surveillance

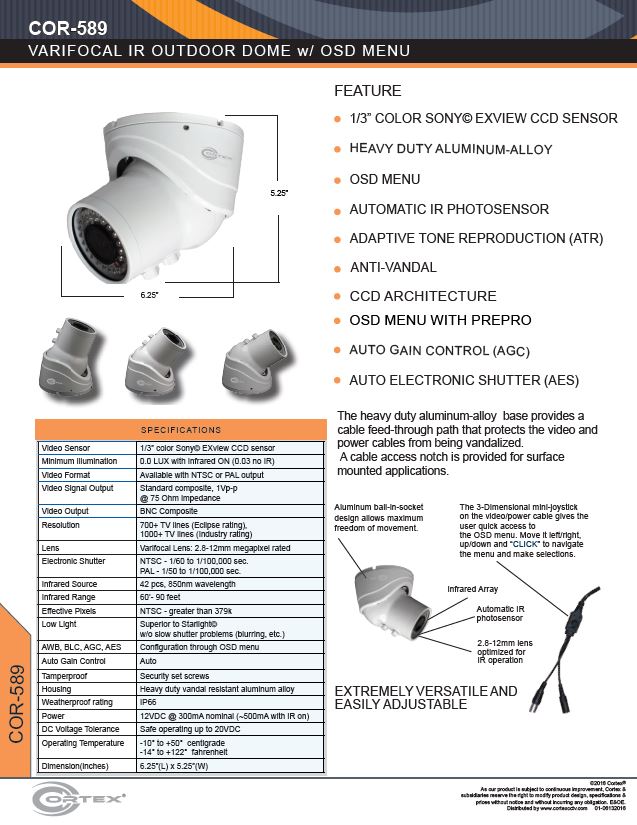

Varifocal IR Hybrid CCTV Dome with OSD Menu

This outdoor dome with high resolution CCD architecture and OSD menu is designed for anti-vandal applications and incorporates a secure varifocal lens adjustment with screw in covers.

Like the 580, the 589 uses advanced video processing functions that lift traditional CCTV video technology to a new level and provides the user with crystal clear video images that can be modified using the on board OSD

Equipped with Adaptive Tone Reproduction (ATR)which balances bright and dark areas in the field of view

Loaded with Features, Including PrePro

The multilingual OSD menu in this camera provides the user with a window into a wealth of options. There are so many features and options it's easy to get confused. In fact some OSD menu cameras force you, as the installer, to spend a lot of time going through each setting until you find the right combination for optimal performance. We know time is money, so we created the PrePro option.

PrePro stands for Pre-Programmed. Our engineers have already programmed default settings in the chipset for optimal performance. That's a lot of words to say "when you reset the camera to factory default, it's good-to-go 99% of the time."

Of course PrePro doesn't handle every situation. But it will satisfy a wide variety of users in most common settings, and the time/cost savings alone make this camera incredibly attractive for large scale installations.

  • 1/3" color Sony™ ExView™ CCD video sensor
  • Resolution: 700+ TV lines
  • 2.8-12mm varifocal
  • Effective pixels:
    • NTSC:greater than 379k
  • 0.0 LUX with Infrared ON (0.03 no IR)
  • 42 infrared LEDS, 850nm
  • IR range: 60-90 feet
  • Weatherproof, vandal resistant case
  • Power: 12VDC
  • Safe operating up to 20VDC
  • Weatherproof: IP66
  • Backlight compensation, high light compensation, ATW, AGC, enhanced intensity range, ACR and more in OSD Menu (see below).
  • Advanced Wide Dynamic Range, known as Adaptive Tone Reproduction (ATR), offers superior performance in situations with high backlight and deep shadows.

Click to download
