KT-b2SI4
1080p Indoor Covert Smoke Detector Camera (Non Functioning)1080p TVI | Casino Quality
Superlative HD resolution of 1080p Full HD for amazing image quapty
- useful digital zoom on live view and playback
- Field select 30 or 25 Hz
Operation over ?almost any? wire
More than 1000 feet on standard RG59 coax
More than 1500 feet on RG6
More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair).
HD-TVI HD BNC main output
- Field select CVBS analog service video for test/apgnment

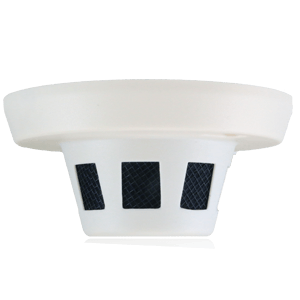

Covert Smoke Detector shaped housing for unobtrusive surveillance
CMOS Sensor size 1/2.8? with 2.4 Megapixels
OSD joystick at camera
- Auto Electronic Shutter (AES)
- Back pght (BLC) and Front (FLC) Compensation
- White balance for colorful or monochrome environments
- D/N operation with selectable auto/color/monochrome
- 2D Noise Reduction (2DNR) with separate Y & C control
- Sharpness control for detail, edge and saturation
12VDC power with low current draw

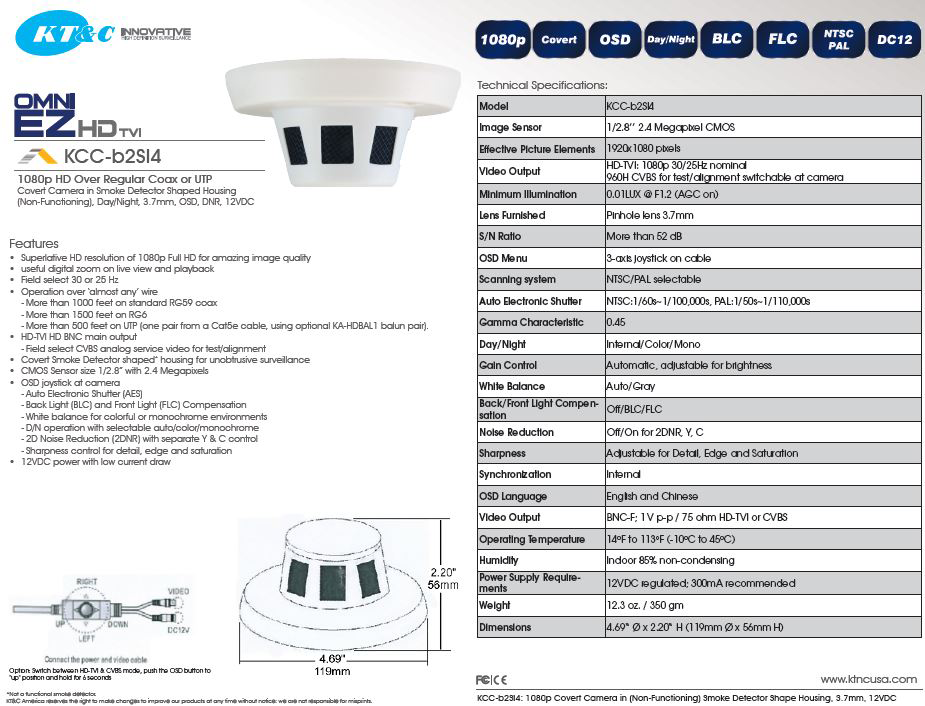

- Model - KCC-b2SI4
- Image Sensor - 1/2.8?? 2.4 Megapixel CMOS
- Effective Picture Elements - 1920x1080 pixels
- Video Output - HD-TVI: 1080p 30/25Hz nominal 960H CVBS for test/alignment switchable at camera
- Minimum Illumination - 0.01LUX @ F1.2 (AGC on)
- Lens Furnished - Pinhole lens 3.7mm
- S/N Ratio - More than 52 dB
- OSD Menu - 3-axis joystick on cable
- Scanning system - NTSC/PAL selectable
- Auto Electronic Shutter - NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
- Gamma Characteristic - 0.45
- Day/Night - Internal/Color/Mono
- Gain Control - Automatic, adjustable for brightness
- White Balance - Auto/Gray
- Back/Front Light Compensation - Off/BLC/FLC
- Noise Reduction - Off/On for 2DNR, Y, C
- Sharpness - Adjustable for Detail, Edge and Saturation
- Synchronization - Internal
- OSD Language - English and Chinese
- Video Output - BNC-F; 1 V p-p / 75 ohm HD-TVI or CVBS
- Operating Temperature - 14?F to 113?F
- Humidity - Indoor 85% non-condensing
- Power Supply Requirements - 12VDC regulated; 300mA recommended
- Weight - 12.3 oz.
- Dimensions - 4.69? ? x 2.20? H (119mm ? x 56mm H)
