Cortex Security with AI Professional Surveillance

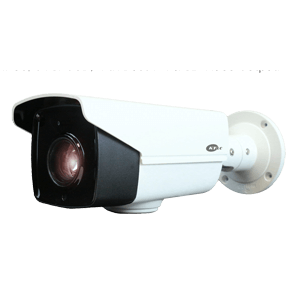

1080p HD-TVI Outdoor Bullet with IR

Omni EZ HD-TVI Casino Grade

Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom

HD-TVI HD BNC output, plus CVBS analog BNC output for alternative connection/monitoring**

CVBS Service Video output for convenient installation, and ease of service**

Operation over /almost any/ wire
- Over 1000 feet on standard RG59 coax; longer distances on RG6
- Up to 500? on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).

1/3inch progressive scan CMOS sensor with .01 lux native light sensitivity

Up the cable controlled motorized zoom 5~50mm Megapixel lens with zoom speed control (6.2?~59.8? FOV)

Auto-focus lens with minimum focus distance control; manual, one-touch or full auto modes; plus 64 lens presets

120dB True Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions**

Digital slow shutter (Sens-Up) low light enhancement (Use of more than 2~4X enhancement should be limited to select applications.)

True Day/Night zero light operating range of 394 feet or more (depending on scene reflectivity) from two Super Beam IR LEDs

Smart IR automatic exposure level adjust to achieve the desired scene brightness despite reflections and bright spots

Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting

Simple and easy to use OSD setup menu
- Local 3-axis joystick inside access cover
- Up-the-cable control from OMNI EZHD recorders (or other compatible UTC control equipment)
- True Wide Dynamic Range for bright or unbalanced scene lighting conditions**
- Digital Wide Dynamic range option
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D + 2D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery
- Defog improves image contrast in the presence of haze or smoke that obscures image details

Smart Digital Zoom** expands selected areas within the field of view to full screen when motion is detected

Dual 24VAC/12VDC operation drawing only 20W

IP66 weather resistant, vandal resistant construction

Operating temperature range of -40°F~140°F with built in heater (can be set for auto/on/off)

Optional KA-BRJB2 Junction Box; or optional KA-BRPM1 Pole Mount with or without a junction box

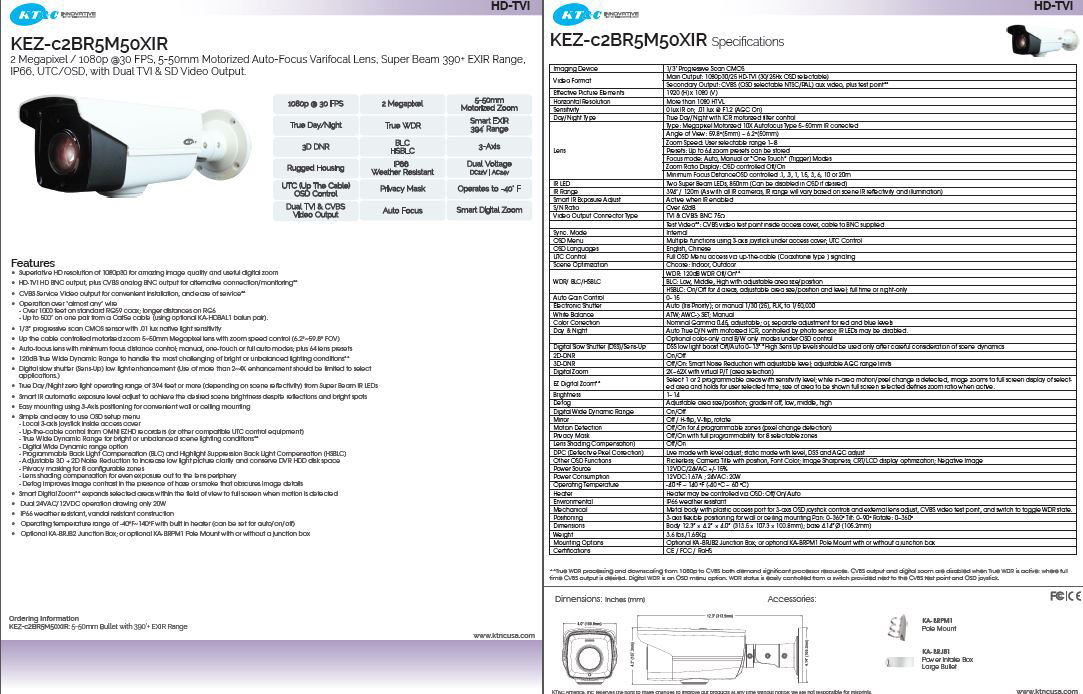

  • Imaging Device - 1/3" Progressive Scan CMOS
  • Video Format - Main Output: 1080p30/25 HD-TVI (30/25Hx OSD selectable), Secondary Output: CVBS (OSD selectable NTSC/PAL) aux video, plus test point
  • Effective Picture Elements - 1920 (H) x 1080 (V)
  • Horizontal Resolution - More than 1080 HTVL
  • Sensitivity - 0 lux IR on; .01 lux @ F1.2 (AGC On)
  • Day/Night Type - True Day/Night with ICR motorized filter control
  • Lens - Type: Megapixel Motorized 10X Autofocus Type 5~50mm IR corrected, Angle of View: 59.8?(5mm) ~ 6.2?(50mm), Zoom Speed: User selectable range 1~8, Presets: Up to 64 zoom presets can be stored, Focus mode: Auto, Manual or /One Touch/ (Trigger) Modes, Zoom Ratio Display: OSD controlled Off/On, Minimum Focus DistanceOSD controlled .1, .3, 1, 1.5, 3, 6, 10 or 20m
  • IR LED - Two Super Beam LEDs, 850nm (Can be disabled in OSD if desired)
  • IR Range - 394' / 120m (As with all IR cameras, IR range will vary based on scene IR reflectivity and illumination)
  • Smart IR Exposure Adjust - Active when IR enabled
  • S/N Ratio - Over 62dB
  • Video Output Connector Type - TVI & CVBS: BNC 75O , Test Video**: CVBS video test point inside access cover, cable to BNC supplied
  • Sync. Mode - Internal
  • OSD Menu - Multiple functions using 3-axis joystick under access cover; UTC Control
  • OSD Languages - English, Chinese
  • UTC Control - Full OSD Menu access via up-the-cable (Coaxitron type ) signaling
  • Scene Optimization - Choose: Indoor, Outdoor
  • WDR/ BLC/HSBLC - WDR: 120dB WDR Off/On, BLC: Low, Middle, High with adjustable area size/position , HSBLC: On/Off for 4 areas, adjustable area size/position and level; full time or night-only
  • Auto Gain Control - 0~15
  • Electronic Shutter - Auto (Iris Priority); or manual 1/30 (25), FLK, to 1/50,000
  • White Balance - ATW; AWC->SET; Manual
  • Color Correction - Nominal Gamma 0.45, adjustable; or, separate adjustment for red and blue levels
  • Day & Night - Auto True D/N with motorized ICR, controlled by photo sensor; IR LEDs may be disabled, Optional color-only and B/W only modes under OSD control
  • Digital Slow Shutter [DSS]/Sens-Up - DSS low light boost Off/Auto 0~13* *High Sens Up levels should be used only after careful consideration of scene dynamics
  • 2D-DNR - On/Off
  • 3D-DNR - Off/On: Smart Noise Reduction with adjustable level; adjustable AGC range limits
  • Digital Zoom - 2X~62X with virtual P/T (area selection)
  • EZ Digital Zoom - Select 1 or 2 programmable areas with sensitivity level; while in-area motion/pixel change is detected, image zooms to full screen display of selected area and holds for user selected time; size of area to be shown full screen selected defines zoom ratio when active
  • Brightness - 1~14
  • Defog - Adjustable area size/position; gradient off, low, middle, high
  • Digital Wide Dynamic Range - On/Off
  • Mirror - Off / H-flip, V-flip, rotate
  • Motion Detection - Off/On for 4 programmable zones (pixel change detection)
  • Privacy Mask - Off/On with full programmability for 8 selectable zones
  • Lens Shading Compensation - Off/On
  • DPC (Defective Pixel Correction) - Live mode with level adjust; static mode with level, DSS and AGC adjust
  • Other OSD Functions - Flickerless; Camera Title with position, Font Color; Image Sharpness; CRT/LCD display optimization; Negative Image
  • Power Source - 12VDC/24VAC +/-15%
  • Power Consumption - 12VDC:1.67A ; 24VAC: 20W
  • Operating Temperature - -40 °F ~ 140 °F
  • Heater - Heater may be controlled via OSD: Off/On/Auto
  • Environmental - IP66 weather resistant
  • Mechanical - Metal body with plastic access port for 3-axis OSD joystick controls and external lens adjust, CVBS video test point, and switch to toggle WDR state
  • Positioning - 3-axis flexible positioning for wall or ceiling mounting Pan: 0~360? Tilt: 0~90? Rotate: 0~360?
  • Dimensions - Body 12.3 inches x 4.2 inches x 4.0 inches base 4.14 inches
  • Weight - 3.6 lbs
  • Mounting Options - Optional KA-BRJB2 Junction Box; or optional KA-BRPM1 Pole Mount with or without a junction box
  • Certifications - CE / FCC / RoHS
