Cortex Security with AI Professional Surveillance

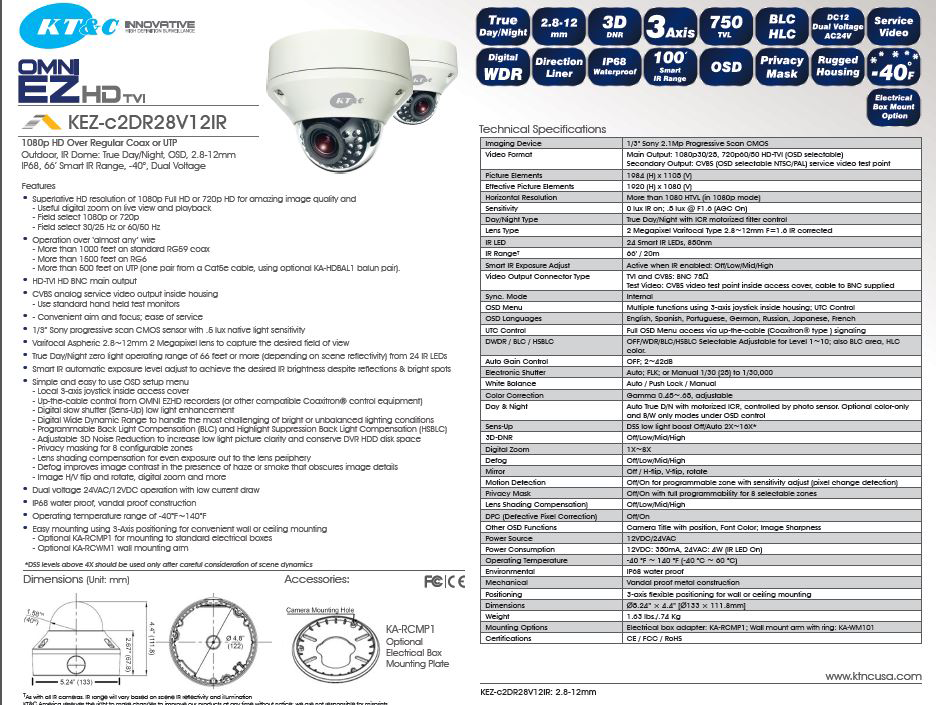

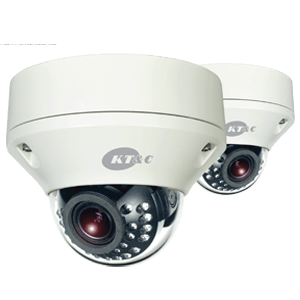

1080p HD-TVI Outdoor Dome with IR

Omni EZ HD-TVI Casino Grade

Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quapty and
- useful digital zoom on pve view and playback
- Field select 1080p or 720p
- Field select 30/25 Hz or 60/50 Hz

Operation over ?almost any? wire
- More than 1000 feet on standard RG59 coax
- More than 1500 feet on RG6
- More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair).

HD-TVI HD BNC main output

CVBS analog service video output inside housing
- Use standard hand held test monitors
- Convenient aim and focus; ease of service

1/3? Sony progressive scan CMOS sensor with .5 lux native pght sensitivity

Varifocal Aspheric 2.8~12mm 2 Megapixel lens to capture the desired field of view

Digital Day/Night low pght operation plus Digital Slow Shutter low pght enhancement (More than 2~4X DSS should be pmited to select apppcations.)

Simple and easy to use OSD setup menu
- Local 3-axis joystick inside access cover
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron? control equipment)
- Digital Wide Dynamic Range to handle the most challenging of bright or unbalanced pghting conditions
- Programmable Back pght Compensation (BLC) and Highpght Suppression Back pght Compensation (HSBLC)
- Adjustable 3D Noise Reduction to increase low pght picture clarity andconserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery
- Defog improves image contrast in the presence of haze or smoke that obscures image details
- Image H/V fpp and rotate, digital zoom and more

Dual voltage 24VAC/12VDC operation with low current draw

IP68water proof, vandal proof construction

Operating temperature range of -40?F~140?F

Easy mounting using 3-Axis positioning for convenient wall or ceipng mounting
- Optional KA-RCMP1 for mounting to standard electrical boxes
- Optional KA-WM101 wall mounting arm with adapter ring (KA-RCTMA1)

  • Imaging Device - 1/3" Sony 2.1Mp Progressive Scan CMOS
  • Video Format - Main Output: 1080p30/25, 720p60/50 HD-TVI (OSD selectable) Secondary Output: CVBS (OSD selectable NTSC/PAL) service video test point
  • Picture Elements - 1984 (H) x 1105 (V)
  • Effective Picture Elements - 1920 (H) x 1080 (V)
  • Horizontal Resolution - More than 1080 HTVL (in 1080p mode)
  • Sensitivity - 0 lux IR on; .5 lux @ F1.6 (AGC On)
  • Day/Night Type - True Day/Night with ICR motorized filter control
  • Lens Type - 2 Megapixel Varifocal Type 2.8~12mm F=1.6 IR corrected
  • IR LED - 24 Smart IR LEDs, 850nm
  • IR Range - 66? / 20m
  • Smart IR Exposure Adjust - Active when IR enabled: Off/Low/Mid/High
  • S/N Ratio - Over 52dB
  • Video Output Connector Type - TVI and CVBS: BNC 75O
  • Sync. Mode - Internal
  • OSD Menu - Multiple functions using UTC Control
  • OSD Languages - English, Spanish, Portuguese, German, Russian, Japanese, French
  • UTC Control - Full OSD Menu access via up-the-cable (Coaxitron type ) signaling
  • DWDR / BLC / HSBLC - OFF/WDR/BLC/HSBLC Selectable Adjustable for Level 1~10; also BLC area, HLC color
  • Auto Gain Control - OFF; 2~42dB
  • Electronic Shutter - Auto; FLK; or Manual 1/30 (25) to 1/30,000
  • White Balance - Auto / Push Lock / Manual
  • Color Correction - Gamma 0.45~.65, adjustable
  • Day & Night - Auto True D/N with motorized ICR, controlled by photo sensor; IR LEDs may be disabled. Optional color-only and B/W only modes under OSD control
  • Sens-Up - DSS low light boost Off/Auto 2X~16X*
  • 3D-DNR - Off/Low/Mid/High
  • Digital Zoom - 1X~8X
  • Defog - Off/Low/Mid/High
  • Mirror - Off / H-flip, V-flip, rotate
  • Motion Detection - Off/On for programmable zone with sensitivity adjust (pixel change detection)
  • Privacy Mask - Off/On with full programmability for 8 selectable zones
  • Lens Shading Compensation) - Off/Low/Mid/High
  • DPC (Defective Pixel Correction) - Off/On
  • Other OSD Functions - Camera Title with position, Font Color; Image Sharpness
  • Power Source - 12VDC/24VAC
  • Power Consumption - 12VDC: 350mA, 24VAC: 4W (IR LED On)
  • Operating Temperature - -40 ?F ~ 140 ?F (-40 ?C ~ 60 ?C)
  • Environmental - IP68 water proof
  • Mechanical - Vandal proof metal construction
  • Positioning - 3-axis flexible positioning for wall or ceiling mounting
  • Dimensions - ?5.24? ? 4.4? [?133 ? 111.8mm]
  • Weight - 1.63 lbs./.74 Kg
  • Mounting Options - Electrical box adapter: KA-RCMP1; Wall mount arm: KA-RCWM1
  • Certifications - CE / FCC / RoHS
