Cortex Security with AI Professional Surveillance

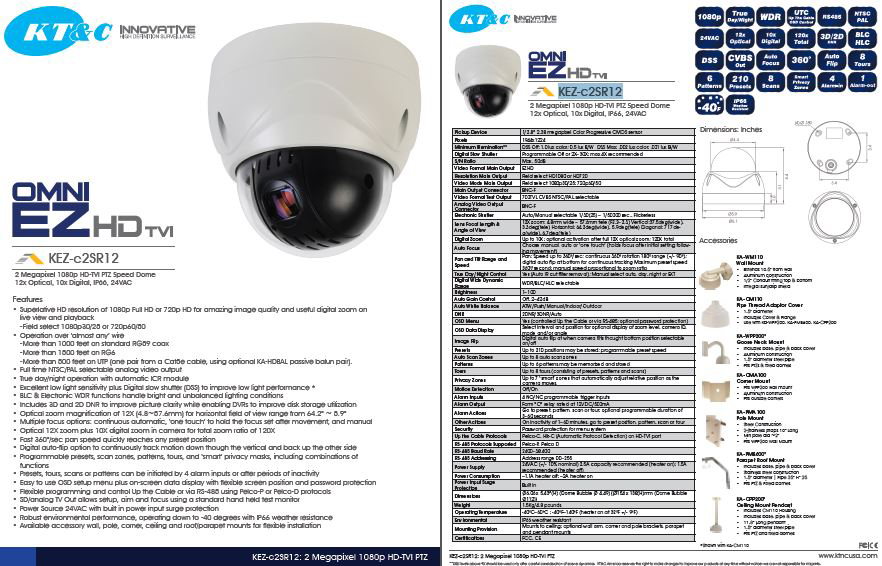

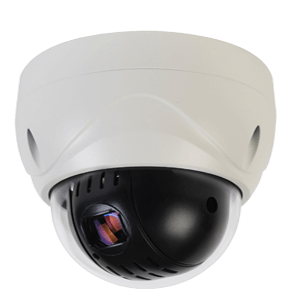

2 Megapixel 1080p HD-TVI PTZ Speed Dome 12x Optical, 10x Digital, IP66, 24VAC

Omni EZ HD-TVI Casino Grade

Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality and useful digital zoom on live view and playback

Field select 1080p30/25 or 720p60/50

Operation over ?almost any? wire

More than 1000 feet on standard RG59 coax

More than 1500 feet on RG6

More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL passive balun pair).

Full time NTSC/PAL selectable analog video output

True day/night operation with automatic ICR module

Excellent low light sensitivity plus Digital slow shutter (DSS) to improve low light performance *

BLC & Electronic WDR functions handle bright and unbalanced lighting conditions

Includes 3D and 2D DNR to improve picture clarity while enabling DVRs to improve disk storage utilization

Optical zoom magnification of 12X (4.8~57.6mm) for horizontal field of view range from 64.2? ~ 5.9?

Multiple focus options: continuous automatic, ?one touch? to hold the focus set after movement, and manual

Optical 12X zoom plus 10X digital zoom in camera for total zoom ratio of 120X

Fast 360?/sec pan speed quickly reaches any preset position

Digital auto-flip option to continuously track motion down though the vertical and back up the other side

Programmable presets, scan zones, patterns, tours, and ?smart? privacy masks, including combinations of functions

Presets, tours, scans or patterns can be initiated by 4 alarm inputs or after periods of inactivity

Easy to use OSD setup menu plus on-screen data display with flexible screen position and password protection

Flexible programming and control Up the Cable or via RS-485 using Pelco-P or Pelco-D protocols

SD/analog TV Out allows setup, aim and focus using a standard hand held test monitor

Power Source 24VAC with built in power input surge protection

Robust environmental performance, operating down to -40 degrees with IP66 weather resistance

Available accessory wall, pole, corner, ceiling and roof/parapet mounts for flexible installation

  • Pickup Device - 1/2.8" 2.38 megapixel Color Progressive CMOS sensor
  • Pixels - 1944x1224
  • Minimum Illumination** - DSS Off: 1.0 lux color; 0.5 lux B/W DSS Max: .002 lux color; .001 lux B/W
  • Digital Slow Shutter - Programmable Off or 2X~30X; max 4X recommended
  • S/N Ratio - Max. 50dB
  • Video Format Main Output - EZHD
  • Resolution Main Output - Field select HD1080 or HD720
  • Video Mode Main Output - Field select 1080p30/25; 720p60/50
  • Main Output Connector - BNC-F
  • Video Format Test Output - 700TVL CVBS NTSC/PAL selectable
  • Analog Video Output Connector - BNC-F
  • Electronic Shutter - Auto/Manual selectable 1/30(25) ~ 1/50000 sec., Flickerless
  • Lens Focal Length & Angle of View - 12X zoom: 4.8mm wide ~ 57.6mm tele (F2.2~2.3) Vertical:37.5deg(wide), 3.3deg(tele) Horizontal: 64.2deg(wide), 5.9deg(tele) Diagonal: 71.7de- g(wide), 6.7deg(tele)
  • Digital Zoom - Up to 10X; optional activation after full 12X optical zoom; 120X total
  • Auto Focus - Choose manual, auto or 'one touch' (holds focus after initial setting follow- ing movement)
  • Pan and Tilt Range and Speed - Pan: Speed up to 360?/sec; continuous 360? rotation 180? range (+/- 90?); digital auto flip at bottom for continuous tracking Maximum preset speed 360?/second; manual speed proportional to zoom ratio
  • True Day/Night Control - Yes (Auto IR cut filter removal); Manual select auto, day, night or EXT
  • Digital Wide Dynamic Range - WDR/BLC/HLC selectable
  • Brightness - 1~100
  • Auto Gain Control - Off, 2~42dB
  • Auto White Balance - ATW/Push/Manual/Indoor/Outdoor
  • DNR - 2DNR/3DNR/Auto
  • OSD Menu - Yes (controlled Up the Cable or via RS-485; optional password protection)
  • OSD Data Display - Select interval and position for optional display of zoom level, camera ID, mode and/or angle
  • Image Flip - Digital auto flip at when camera tilts thought bottom position selectable on/off
  • Presets - Up to 210 positions may be stored; programmable preset speed
  • Auto Scan Zones - Up to 8 auto scan zones
  • Patterns - Up to 6 patterns may be memorized and stored
  • Tours - Up to 8 tours (consisting of presets, patterns and scans)
  • Privacy Zones - Up to 7 'smart' zones that automatically adjust relative position as the camera moves
  • Motion Detection - off/On
  • Alarm Inputs - 4 NO/NC programmable trigger inputs
  • Alarm Output - Form "C" relay rated at 12VDC/500mA
  • Alarm Actions - Go to preset, pattern, scan or tour; optional programmable duration of 3~60 seconds
  • Other Actions - On inactivity of 1~60 minutes, go to preset position, pattern, scan or tour
  • Security - Password protection for menu system
  • Up the Cable Protocols - elco-C, Hik-C (Automatic Protocol Detection) on HD-TVI port
  • RS-485 Protocols Supported - Pelco-P, Pelco D
  • RS-485 Baud Rate - 2400~38,400
  • RS-485 Addressing - Address range 00~255
  • Power Supply - 24VAC (+/- 10% nominal) 2.5A capacity recommended (heater on); 1.5A recommended (heater off)
  • Power Consumption - ~1.1A heater off; ~2A heater on
  • Power Input Surge Protection - Built in
  • Dimensions - ?6.06 x 5.43"(H) (Dome Bubble ? 4.49) {?154 x 138(H)mm (Dome Bubble ?112)}
  • Weight - 1.5Kg/4.8 pounds
  • Operating Temperature - -40?C~60?C ; -40?F~140?F (heater on at 32?F +/- 9?F)
  • Environmental - IP66 weather resistant
  • Mounting Provision - Mounts to ceiling; optional wall arm, corner and pole brackets, parapet and pendant mounts
  • Certifications - FCC, CE
