Cortex Security with AI Professional Surveillance

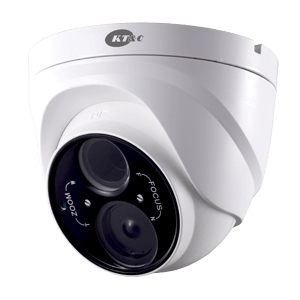

1080p HD-TVI Outdoor Turret with IR

Omni EZ HD-TVI Casino Grade

Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom

HD-TVI HD BNC output, plus CVBS analog BNC output for alternative connection/monitoring and ease of service**

Operation over ?almost any? wire
- Over 1000 feet on standard RG59 coax; longer distances on RG6
- Up to 500? on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).

1/3? progressive scan CMOS sensor with .01 lux native light sensitivity

Externally adjustable 2.8~12mm F=1.4 Varifocal Megapixel lens to capture the desired field of view (92?~32? FOV)

120dB True Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions**

Digital slow shutter (Sens-Up) low light enhancement*

True Day/Night zero light operating range of 164 feet? or more from Super Beam IR LED

Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots

Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting

Simple and easy to use OSD setup menu
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron? control equipment)
- True Wide Dynamic Range for bright or unbalanced scene lighting conditions**
- Digital Wide Dynamic range option
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D + 2D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery
- Defog improves image contrast in the presence of haze or smoke that obscures image details

Smart digital zoom** expands a selected area within the field of view to full screen when motion is detected

Smart focus to adjust the lens by maximizing the easy to see on screen numeric readout to optimize focus

IP66 weather resistant metal housing

Operating temperature range of -4?F~140?F

Optional Pole mount KA-BRPM1; Corner Mount KA-BRCM1; Wall mount arm KA-TRWM1

  • Imaging Device - 1/3" Progressive Scan CMOS
  • Video Format - Main Output: 720p60(50) HD-TVI Secondary Output: CVBS** (OSD selectable NTSC/PAL)
  • Picture Elements - 1305 (H) x 1049 (V)
  • Effective Picture Elements - 1280 (H) x 720 (V)
  • Horizontal Resolution - More than 1,000 HTVL
  • Sensitivity - 0 lux IR on; sensor .001 lux @ F1.2 (AGC On); .0014 lux @ F1.4 (AGC On)
  • Lens Type - Megapixel Varifocal Type 2.8~12mm F=1.4 IR corrected
  • Angle of view - 78(2.8mm) ~ 28(12mm)
  • IR LED - One Super Beam IR LED, 850nm (Can be disabled in OSD if desired)
  • IR Range - 164'
  • Smart IR Exposure Adjust - Active when IR enabled
  • S/N Ratio - Over 62dB (NR On)
  • Video Output Connector Type - TVI and CVBS** - BNC 75O
  • Sync. Mode - Internal
  • OSD Menu - Multiple functions using 3-axis joystick under access cover; UTC Control
  • OSD Languages - English, Chinese
  • UTC Control - Full OSD Menu access via up-the-cable (Coaxitron type ) signaling
  • Auto Gain Control - Off/low/Middle/High
  • Electronic Shutter - Auto; or 1/60 (50) to 1/50,000
  • White Balance - Auto/Manual
  • Color Correction - Nominal Gamma 0.45, adjustable; or, separate adjustment for red and blue levels
  • Day & Night - Auto True D/N with motorized ICR, controlled by photo sensor; IR LEDs may be disabled, Optional color-only and B/W only modes under OSD control
  • Sens-Up - DSS low light boost 0~16*
  • 3D-DNR - Off/Low/Middle/High
  • Digital Wide Dynamic Range - Global AE/DWDR
  • Mirror/Flip - Off, H, V, H/V (rotate)
  • Motion Detection - Off/On for 4 selectable zones
  • Privacy Mask - Off/On for 8 selectable zones
  • 3D-DNR - Off/Low/Middle/High
  • Other OSD Functions - Digital zoom, Contrast, Sharpness
  • Power Source - 12VDC
  • Power Consumption - 12VDC: 333mA IR LED On
  • Operating Temperature - -4F ~ 140F (-20C ~ 60C)
  • Environmental - IP66 weather resistant
  • Mechanical - Metal camera ball, plastic base
  • Positioning - 3-axis flexible positioning for wall or ceiling mounting Pan: 0~360 Tilt: 0~90 Rotate: 0~360
  • Dimensions - 5.14 3.67 [130.54 x 93.24 mm]
  • Weight - .84 lbs./380g
  • Mounting Options - KA-TRWM1 Wall Arm; KA-TRJB1 Junction Box; KA-BRPM1 Pole Mount; KA-BRCM1 Corner Mount
  • Certifications - CE / FCC / RoHS
