Cortex Security with AI Professional Surveillance

COR-SP470:

IR Sensitive Wall Mounted Indoor PTZ Dome Camera

COR-SP470 speed dome PTZ cameras are sensitive to infrared light and connect to almost any DVR. Control is easy using aCN430, CN530, or similar controller. With variable speed, 64 programmable presets, a total zoom factor of 216x (18x optical & 12x digital), this indoor dome security camera is a perfect fit in almost any indoor environment.

This PTZ camera has no dead spot - full 360° continuous rotation - and 90° tilt with auto-flip. It connects to any DVR that features industry standard analog (1Vp-p composite) video inputs. Pan & tilt movement under manual control is rated at 36° per second, with up to 100° per second on presets.

Connection is easy with an RS485 communication line. For control functions please consider our COR-CN430 or COR-CN530 PTZ controller, or you can use other controllers with Pelco, Pelco-D, Pelco-P or Ultrak communication protocol.

Infrared Sensitive

The camera module in this PTZ dome camera is sensitive to infrared light. It can work in total darkness and provide clear, sharp black-and-white video if you have a radiant infrared source. The camera does not contain an internal infrared light source so without an external source you won't be able to use this function.

Got a tough PTZ environment?

Consider model COR-SP470I. It's the same PTZ camera with the addition of a super tough, high impact resistant clear LEXAN dome instead of the standard regular acrylic dome.

PTZ Accessories

Looking for PTZ controllers and PTZ compatible DVRs? Joy sticks? Pan motors? Brackets? Replacement domes? You can find all that and more in our PTZ Accessories

  • Full Sony Solution  FCB-EX480-1010
  • 1/4" Sony Super HAD Ex-View CCD video sensor
  • 560 iTV lines (industry standard used by other CCTV manufacturers)
  • 470 eTV lines (Cortex Security standard - a more precise standard)
  • Effective pixels:
    • NTSC: 768 x 494 (379k)
    • PAL: 752 x 582 (437k)
  • Digital signal processing (DSP)
  • 4.1-73.8mm varifocal lens
  • Auto-focus module
  • Daylight sensitive to 0.7 LUX
  • Infrared sensitive (requires external IR light source)
  • 18x optical zoom, 12x digital zoom (216x total)
  • 360° continuous pan rotation
  • Rotational speed: 36° per second, up to 100° per second on
  • Pelco, Pelco-D, Pelco-P, and Ultrak
  • RS485 and Cortex Security control protocols
  • Auto-white balance (AWB) & auto-gain control (AGC)
  • Manually variable speed control
  • 64 programmable presets accurate to 0.05°
  • Smart scan & touring (auto scan)
  • Manual focus and auto-focus (with adjustable levels of sensitivity)
  • Aluminum housing
  • Wall mount bracket
  • 24VAC power source (included)
  • Indoor design

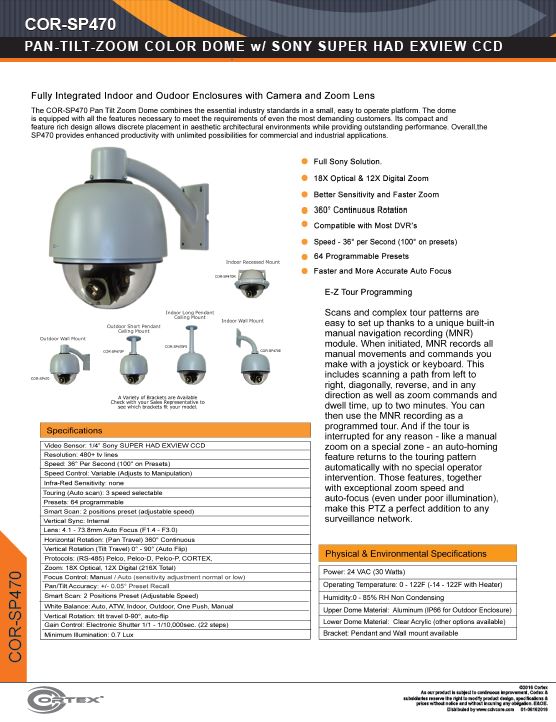

Download a Specification Sheet

PTZ spec sheet
