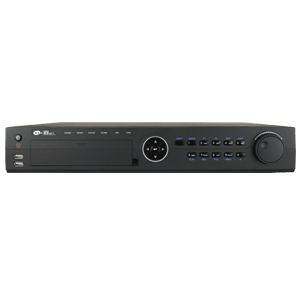

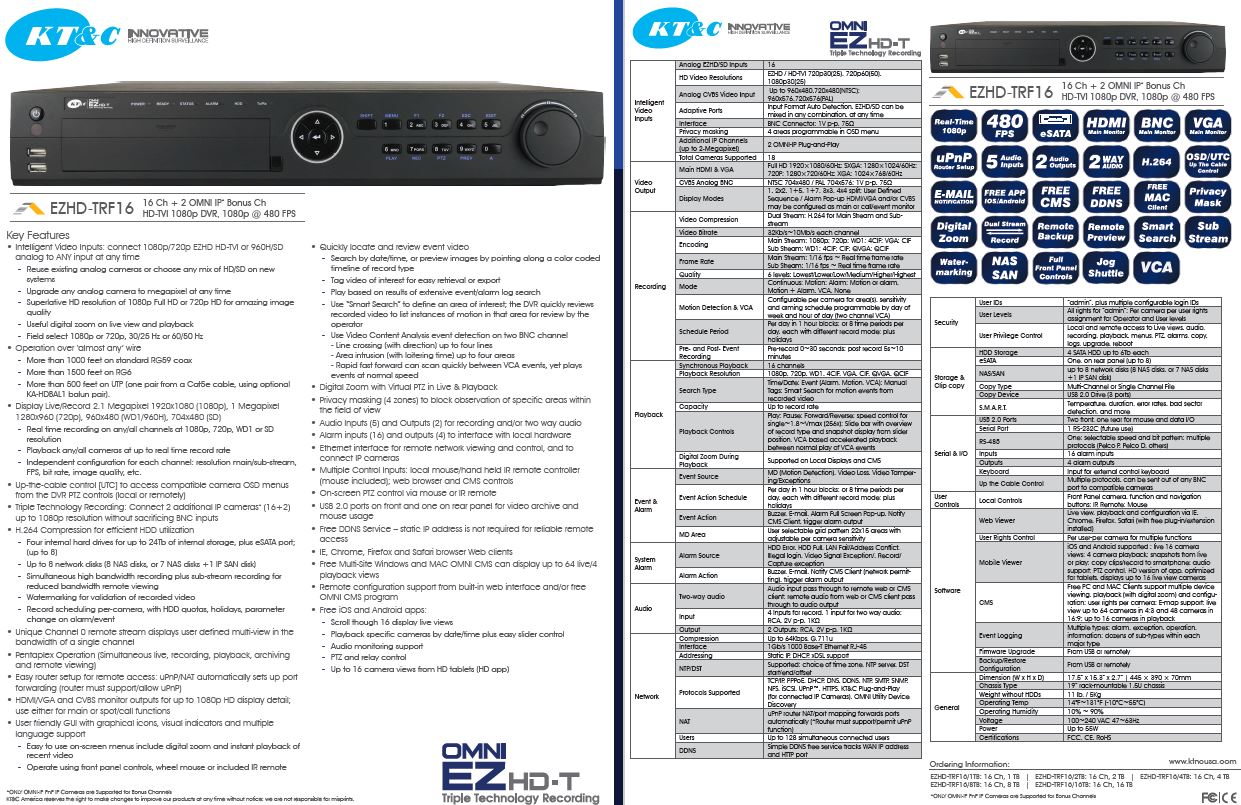

KT-TRF16:
16 Channel HD-TVI DVRIntelligent Video Inputs: connect 1080p/720p EZHD HD-TVI or 960H/SD analog to ANY input at any time
- Reuse existing analog cameras or choose any mix of HD/SD on new systems
- Upgrade any analog camera to megapixel at any time
- Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality
- Useful digital zoom on live view and playback
- Field select 1080p or 720p, 30/25 Hz or 60/50 Hz
Operation over "almost any" wire
- More than 1000 feet on standard RG59 coax
- More than 1500 feet on RG6
- More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair).
Display Live/Record 2.1 Megapixel 1920x1080 (1080p), 1 Megapixel 1280x960 (720p), 960x480 (WD1/960H), 704x480 (SD)
- Real time recording on any/all channels at 1080p, 720p, WD1 or SD resolution
- Playback any/all cameras at up to real time record rate
- Independent configuration for each channel: resolution main/sub-stream, FPS, bit rate, image quality, etc.
Up-the-cable control [UTC] to access compatible camera OSD menus from the DVR PTZ controls (local or remotely)
Triple Technology Recording: Connect 2 additional OMNI-IP Plug-and-Play IP cameras (4+2, 8+2, 16+2) up to 1080p resolution without sacrificing BNC inputs
H.264 Compression for efficient HDD utilization
- Four internal hard drives for up to 24Tb of internal storage, plus eSATA port; (up to 8)
- Up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk)
- Simultaneous high bandwidth recording plus sub-stream recording for reduced bandwidth remote viewing
- Watermarking for validation of recorded video
- Record scheduling per-camera, with HDD quotas, holidays, parameter change on alarm/event
Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel
Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)
Easy router setup for remote access: uPnP/NAT automatically sets up port forwarding (router must support/allow uPnP)
HDMI/VGA and CVBS monitor outputs for up to 1080p HD display detail; use either for main or spot/call functions
User friendly GUI with graphical icons, visual indicators and multiple language support
- Easy to use on-screen menus include digital zoom and instant playback of recent video
- Operate using front panel controls, wheel mouse or optional IR remote
Quickly locate and review event video
- Search by date/time, or preview images by pointing along a color coded timeline of record type
- Tag video of interest for easy retrieval or export
- Play based on results of extensive event/alarm log search
- Use "Smart Search" to define an area of interest; the DVR quickly reviews recorded video to list instances of motion in that area for review by the operator
- Use Video Content Analysis event detection on two BNC channel
- Line crossing (with direction) up to four lines
- Area intrusion (with loitering time) up to four areas
- Rapid fast forward can scan quickly between VCA events, yet plays events at normal speed
Digital Zoom with Virtual PTZ in Live & Playback
Privacy masking (4 zones) to block observation of specific areas within the field of view
Audio Inputs (5) and Outputs (2) for recording and/or two way audio
Alarm inputs (16) and outputs (4) to interface with local hardware
Ethernet interface for remote network viewing and control, and to connect IP cameras
Multiple Control Inputs: local mouse/hand held IR remote controller (mouse included); web browser and CMS controls
On-screen PTZ control via mouse or IR remote
USB 2.0 ports on front and one on rear panel for video archive and mouse usage
Free DDNS Service ? static IP address is not required for reliable remote access
IE, Chrome, Firefox and Safari browser Web clients
Free Multi-Site Windows and MAC OMNI CMS can display up to 64 live/4 playback views
Remote configuration support from built-in web interface and/or free OMNI CMS program
Free iOS and Android apps:
- Scroll though 16 display live views
- Playback specific cameras by date/time plus easy slider control
- Audio monitoring support
- PTZ and relay control
- Up to 16 camera views from HD tablets (HD app)
EZHD-TRF16: 16 Ch, No Drive
EZHD-TRF16/1TB: 16 Ch, 1 TB
EZHD-TRF16/2TB: 16 Ch, 2 TB
EZHD-TRF16/4TB: 16 Ch, 4 TB
EZHD-TRF16/8TB: 16 Ch, 8 TB
EZHD-TRF16/16TB: 16 Ch, 16 TB
- Analog EZHD/SD Inputs - 16
- Analog CVBS Video Input - Up to 960x480,720x480(NTSC); 960x576,720x576(PAL)
- Adaptive Ports - Input Format Auto Detection, EZHD/SD can be mixed in any combination, at any time
- Interface - BNC Connector; 1V p-p, 75?
- Privacy masking - 4 areas programmable in OSD menu
- Total Cameras Supported - 18
Video Output
- Main HDMI & VGA - Full HD 19201080/60Hz; SXGA: 12801024/60Hz; 720P: 1280720/60Hz; XGA: 1024768/60Hz
- CVBS Analog BNC - NTSC 704x480 / PAL 704x576; 1V p-p, 75O
- Display Modes - 1, 2x2, 1+5, 1+7, 3x3, 4x4 split; User Defined Sequence / Alarm Pop-up HDMI/VGA and/or CVBS may be configured as main or call/event monitor
Recording
- Video Compression - Dual Stream: H.264 for Main Stream and Sub-stream
- Video Bitrate - 32Kb/s~6Mb/s each channel
- Encoding - Main Stream: 1080p; 720p; WD1; 4CIF; VGA; CIF Sub Stream: WD1; 4CIF; CIF; QVGA; QCIF
- Frame Rate - Main Stream: 1/16 fps ~ Real time frame rate Sub Stream: 1/16 fps ~ Real time frame rate
- Quality - 6 levels: Lowest/Lower/Low/Medium/Higher/Highest
- Mode - Continuous; Motion; Alarm; Motion or alarm, Motion + Alarm
- Motion Detection - Configurable per camera for area(s), sensitivity and arming schedule programmable by day of week and hour of day
- Schedule Period - Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays
- Pre- and Post- Event Recording - Pre-record 0~30 seconds; post record 5s~10 minutes
Playback
- Synchronous Playback - 16 channels
- Playback Resolution - 1080p, 720p, WD1, 4CIF, VGA, CIF, QVGA, QCIF
- Search Type - Time/Date; motion or log event; Manual Tags; Smart Search for motion events from recorded video
- Capacity - Up to record rate
- Playback Controls - Play; Pause; Forward/Reverse; speed control for single~1.8~16X; Slide bar with overview of record type and snapshot display from slider position
- Digital Zoom During Playback - Supported on Local Displays and CMS
Event & Alarm
- Event Source - MD (Motion Detection), Video Loss, Video Tampering/Exceptions
- Event Action Schedule - Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays
- Event Action - Buzzer, E-mail, Alarm Full Screen Pop-up, Notify CMS Client
- MD Area - User selectable grid pattern 22x15 areas with adjustable per camera sensitivity
System Alarm
- Alarm Source - HDD Error, HDD Full, LAN Fail/Address Conflict, Illegal login, Video Signal Exception/, Record/Capture exception
- Alarm Action - Buzzer, E-mail, Notify CMS Client (network permitting)
Audio
- Two-way audio - Audio input pass through to remote web or CMS client; remote audio from web or CMS client pass through to audio output
- Input / Output - 4 Inputs for record, 1 input for two way audio; RCA, 2V p-p, 1KO, 2 Outputs; RCA, 2V p-p, 1KO
Network
- Compression - Up to 64Kbps, G.711u
- Interface - 1Gb/s 1000 Base-T Ethernet RJ-45
- Addressing - Static IP, DHCP, xDSL support
- NTP/DST - Supported; choice of time zone, NTP server, DST start/end/offset
- Protocols Supported - TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS, KT&C Plug-and-Play (for connected IP Cameras), OMNI Utility Device Discovery
- NAT - uPnP router NAT/port mapping forwards ports automatically (*Router must support/permit uPnP function)
- Users - Up to 128 simultaneous connected users
- DDNS - Simple DDNS free service tracks WAN IP address and HTTP port
Security
- User IDs - "Admin, plus multiple configurable login IDs
- User Levels - All rights for "admin; Per camera per user rights assignment for Operator and User levels
- User Privilege Control - Local and remote access to Live views, audio, recording, playback, menus, PTZ, alarms, copy, logs, upgrade, reboot
Storage & Clip copy
- HDD Storage - 4 SATA HDD up to 4Tb each
- eSATA - One, on rear panel
- NAS/SAN - up to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk)
- Copy Type - Multi-Channel or Single Channel File
- Copy Device - USB 2.0 Drive (3 ports)
- S.M.A.R.T. - Temperature, duration, error rates, bad sector detection, and more
Serial & I/O
- USB 2.0 Ports - One front, one rear for mouse and data I/O
- RS-485 - One; selectable speed and bit pattern; multiple protocols (Pelco P, Pelco D, others)
- Up the Cable Control - Multiple protocols, can be sent out of any BNC port to compatible cameras
User Controls
- Local Controls - Front Panel camera, function and navigation buttons; IR Remote; Mouse
Software
- Web Viewer - Live view, playback and configuration via IE, Chrome, Firefox, Safari (with free plug-in/extension installed)
- User Rights Control - Per user-per camera for multiple functions
- Mobile Viewer - iOS and Android supported ; live 1 & 4 camera views; single camera playback; snapshots from live or play; copy clips/record to smartphone; audio support; PTZ control. HD version of app, optimized for tablets, displays up to 16 live view cameras
- CMS - Free PC and MAC Clients support multiple device viewing, playback (with digital zoom) and configuration; user rights per camera; E-map support; live view up to 64 cameras in 4:3 and 48 cameras in 16:9; up to 16 cameras in playback
- Event Logging - Multiple types: alarm, exception, operation, information; dozens of sub-types within each major type
- Firmware Upgrade - From USB or remotely
- Backup/Restore Configuration - From USB or remotely
- General Dimension (W x H x D) - 17.5 x 15.3 x 2.7 | 445 390 70mm
- Chassis Type - 19 rack-mountable 1.5U chassis
- Weight without HDDS - 11 lb. / 5Kg
- Operating Temp - 14F~131F (-10C~55C)
- Operating Humidity - 10% ~ 90%
- Voltage - 100~240 VAC 47~63Hz
- Power - Up to 55W
- Certifications - FCC, CE, RoHS
