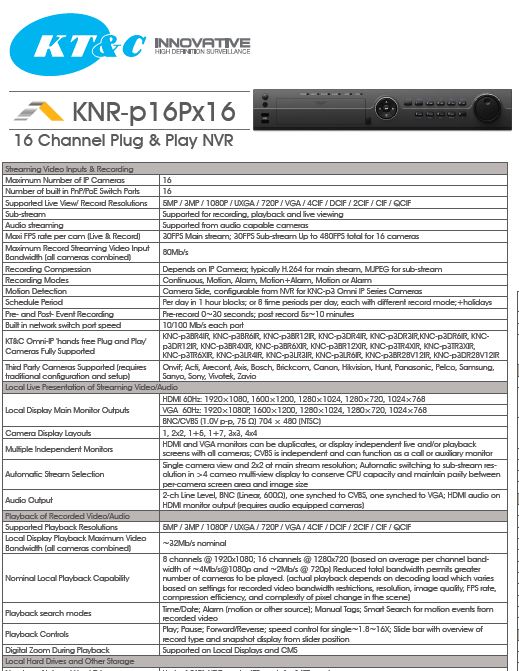

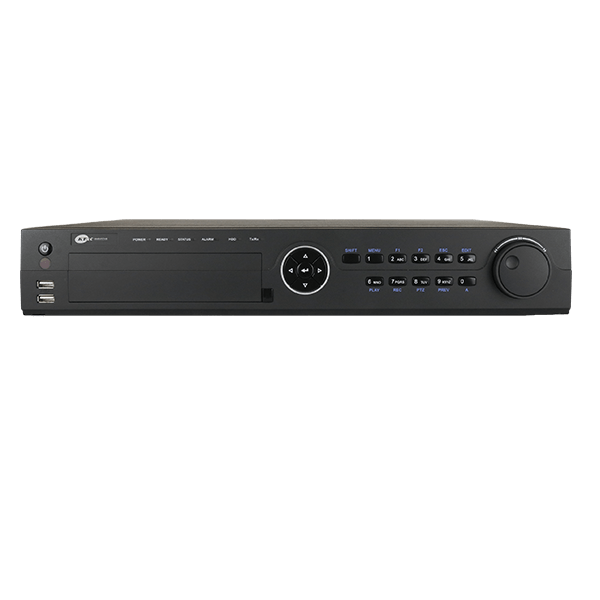

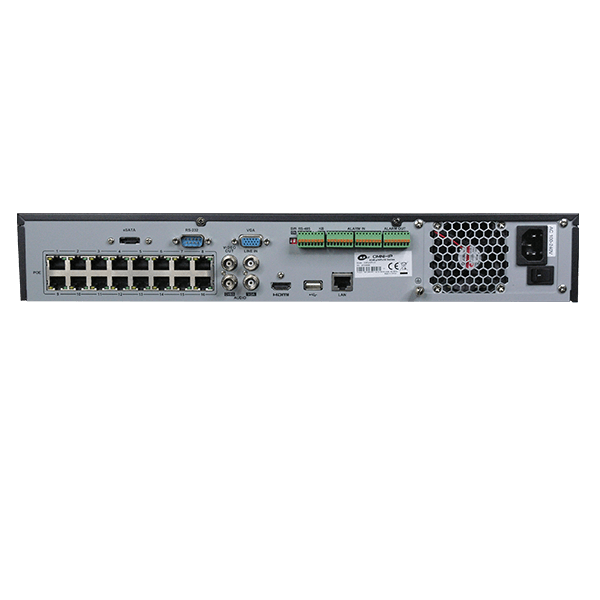

KTp16Px16:
16 Channel Plug & Play NVRConnect up to 16 IP cameras in any combination with no special licenses required- "Hands Free" Plug-and-Play cameras on the 4 built-in PoE ports- Open Compatability or other supported IP cameras* (*See list of manufacturers/models)- Power cameras with up to 15W each (802.3af PoE) from a total of 50W built in PoE power.
Stream an aggregate bandwidth to the NVR of up to 20Mb/s from all connected cameras- Select camera resolutions up to 5MP- Set lower resolution/rate/image quality to meet application/installation requirements
Simple To Use
Easy to use on-screen menus include digital zoom and instant playback of recent video- Operate using front panel controls, wheel mouse or included IR remote
Optional Features
Optional arming schedule for action/notifications and alarms (e.g. ignore on-camera motion from specific cameras during normal business hours)
- (Live and Record) Up to 120FPS total for 16 cameras
- Recording Compression Depends on IP Camera; typically H.264 for main stream, MJPEG for sub-stream
- Built in Web Server Interface
- Backup/Restore Configuration
- Nominal Local Playback Capability
- Automatic Stream Selection
- Built in network switch port speed
- Motion Detection
- Maximum FPS rate per camera 30FPS Main stream; 30FPS Sub-stream
- Up to 2 SATA HDD; up to 4TB each for 8TB maximum
- LAN/WAN Network Port
