Cortex Security with AI Professional Surveillance

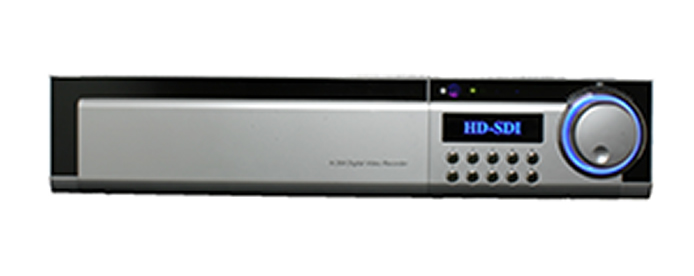

16-Channel HD SDI DVR

16 Channel HD SDI DVR

This next generational DVR upgrades the current traditional CCTV camera network! Install an SDI camera on their exiting coaxial cable network and hook up a COR-Orbix 16 Hi Def security DVR for a spectacular result. Compare their current CCTV camera quality with the SDI camera, side by side, on the same network, and wait for the client to call back and order an installation upgrade.

Easy to Program Thanks to Embedded Linux

Save time and expense because SDI does not require new cables - existing cables used by traditional (analog) CCTV camera are compatible with this 1080p product. Within minutes you can upgrade your clients system to offer high definition CCTV security giving them assurance the right choice was made buying this product.

Easy LAN Connection and Setup

This DVR provides 1080P and D1 recording. It has inputs for Serial Digital Interface (SDI) cameras and standard (traditional) CCTV camera inputs.

Add an SDI Camera

This DVR doesn't come with cameras. We suggest our new high definition SDI COR-553SHD. Add a megapixel lens and the quality of the video recorded in any standard security network you upgrade will make other cameras appear substandard. Your client will be amazed and want more.

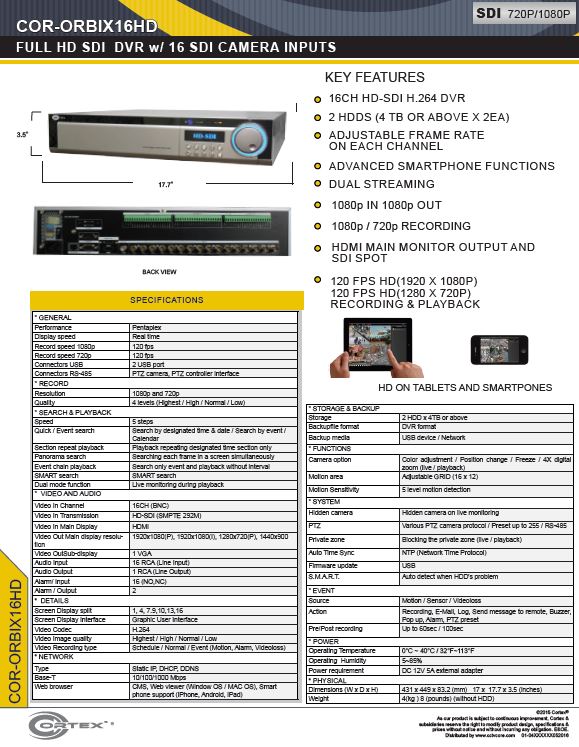

  • Video Compression / H.264
  • Recording Mode / Scheduled, manual, motion trigger, sensor

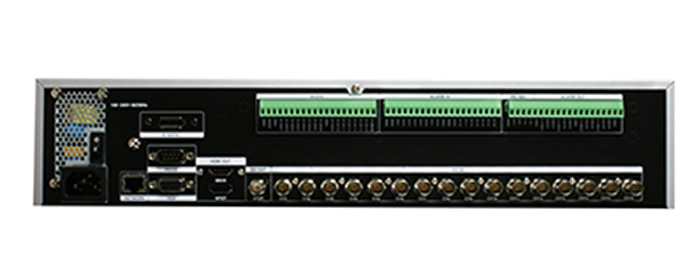

  • SDI Video Output / 16 BNC connectors for SDI cameras
  • Network / Ethernet
  • Backup / USB & DVD R/W support
  • Motion Detection Format / grid based
  • IP megapixel camera compatible
  • HDD Support / up to 5
  • Dimension / 17”(w) x 17.7”(d) x 3.5”(h)
  • High definition CCTV compatible
  • Warranty / All Cortex Security products have a 3 year warranty
