Cortex Security with AI Professional Surveillance

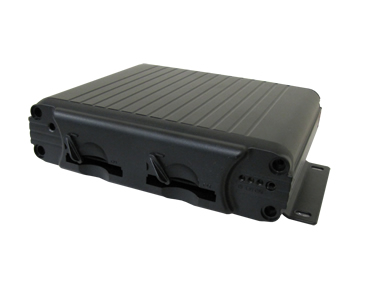

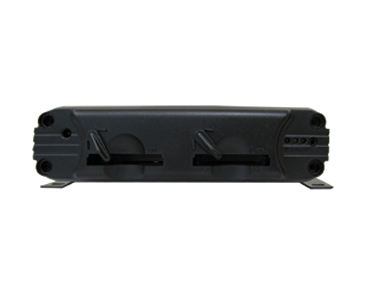

Portable Security DVR with 4 CCTV Camera Inputs

The COR-MOB4 uses your vehicle battery for power and has room for 4 standard CCTV video inputs. Cameras (sold separately) can be placed anywhere, inside or outside. It's easy to install and comes with a cigarette lighter adapter that connects to the vehicle's auxiliary power output.

Auto-Record, Manual Record

Recording can be set up to happen automatically or through a manual trigger.

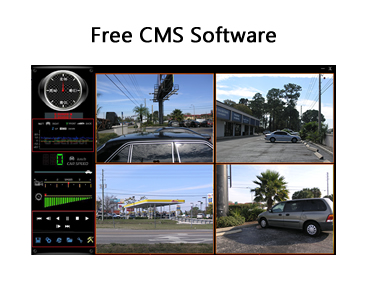

Free software (included) lets you play the video and see important vehicle factors like speed, course (using Google map overlay), direction, g-forces and more. You can, of course, search video, FF and reverse, and perform other functions common to most DVR video software.

Suggested Use

  • Recreational Vehicle
  • Armored Truck
  • Public Bus
  • Mass Rapid Transit
  • Commercial Vehicle
  • Commercial Boats
  • Tour vehicles
  • Luxury Yacht
  • Ambulance
  • Fire Truck
  • Police Car
  • Motorcycle
  • Fleet Company
  • Mobile Vendor
  • Mass Transit Railway
  • Video sensor: 1/4" CMOS, front and rear
  • Highest Recording Resolution: VGA (front and rear), 640 x 480
  • Highest Frame Rate:
    • Front - 30fps
    • Rear - 15fps
  • Lens Angle:
    • Front - 120°
    • Rear - 170°

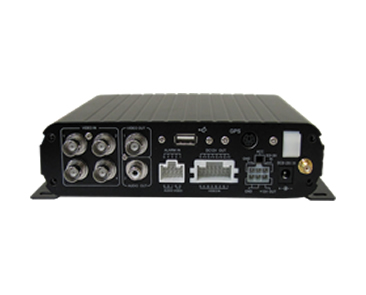

  • Video inputs: 4, standard analog CCTV (1Vp-p, 75-ohms impedance) on BNC connectors
  • Audio inputs
  • Highest Frame Rate: 120fps max.
  • Built-in GPS
  • Integration with Google maps
  • USB port
  • Flash memory (not included)
  • Removable CF card supported
  • Streaming 3G video available with optional COR-MOB4G communications card
  • Manual record button
  • Free multilingual software
  • Free IR remote control included
  • Power: 8-36VDC (350mA nominal)

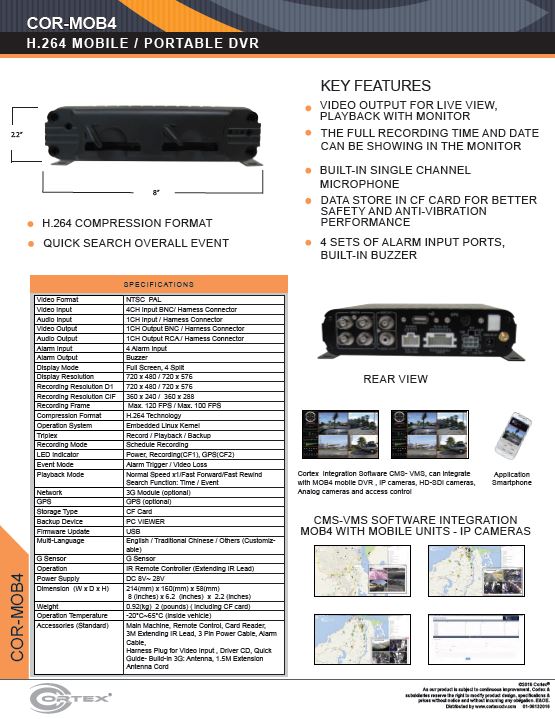

Download the spec sheet
