Cortex Security with AI Professional Surveillance
Your Trail:  /   Home  /    AHD Bullet Cameras  /  COR-H5BV

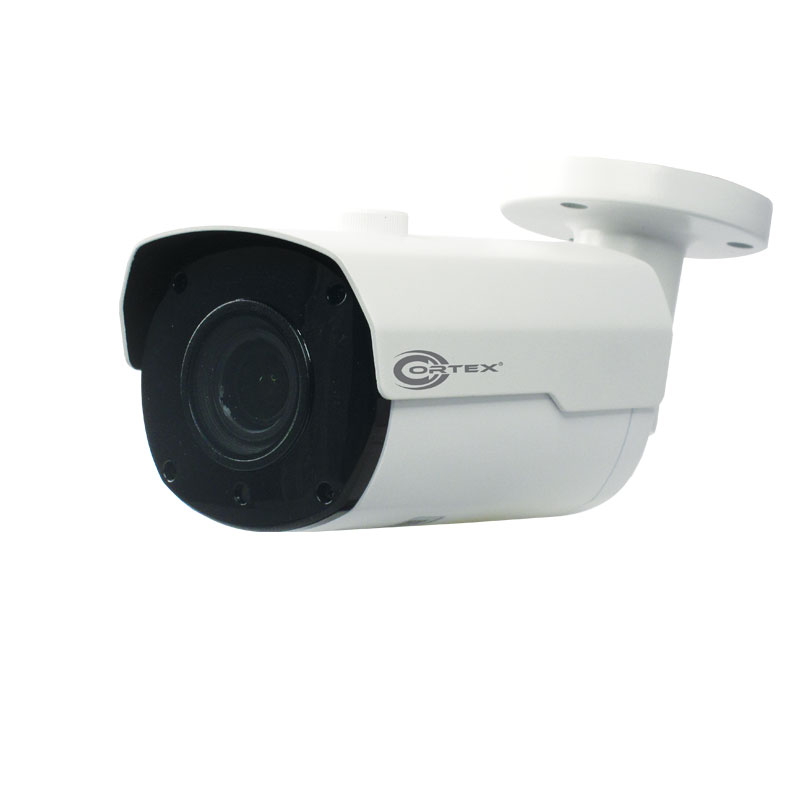

Medallion 5MP Cortex AHD Camera with 2.8-12mm Motorized Zoom Lens

AHD | TVI | CVI | 5MP & 4MP | 2K HD Camera

Best long range infrared coverage with stealth IR cover. This premium quality outdoor varifocal bullet camera provides users with 5MP AHD / TVI output or 4MP AHD / TVI output (OSD selectable). The built-in infrared array provides exceptionally even and consistent long-distance viewing. The varifocal lens can be adjusted quickly thanks to an Installer's cover. A mini-joystick on the cable harness assists with on-screen display (OSD) menu and remote UTC is also on-board.

Cortex 5MP cameras are perfect for Medallion Hybrid DVR installations

Varifocal lens adjustment on front bottom access port for easy access

5MP over Coax or video Baluns

Send Me Prices

5MP over coax using AHD or TVI is a great way to use existing cable runs in order to upgrade to a higher resolution. Cortex 5MP cameras are affordable and long lasting. These models can be installed for residential and commercial applications and pair perfectly with Cortex Medallion Series Hybrid DVRs.

Make sure test this 5MP camera online or at a local showroom.

Send Me Prices

Main Features

  • Ultra High sensitivity plus long range Infrared
  • Includes interline HDR image synthetic algorithm that expands Dynamic Range up to 100dB
  • Stealth Infrared cover for aesthetic style
  • High signal to noise ratio SNR:39dB
  • Sensitivity:2800mV/Lux
  • Min. Illumination: Color 0.05lux B/W with IR 0 Lux
  • Infrared distance: 115 feet Average ( Up to 150 feet with higher AGC)
  • Improved infrared quantum efficiency in the range of 850nm-940nm
  • UTC: coaxial controls (Paired for Medallion DVR)
  • Shutter Speed Control : OSD
  • AGC Adjustment : OSD
  • White Balance : ATW /
  • NTSC / PAL
  • 5MP AHD / 5MP TVI @20fps
  • 4MP AHD / 4MP TVI @30fps
  • 2MP CVI @30fps
  • 960H Analog legacy @30fps
  • Input voltage: 12V DC 4W
  • Material: Metal outdoor housing
  • Weather rating: IP66
  • Mounting: Tamper resistant bracket
