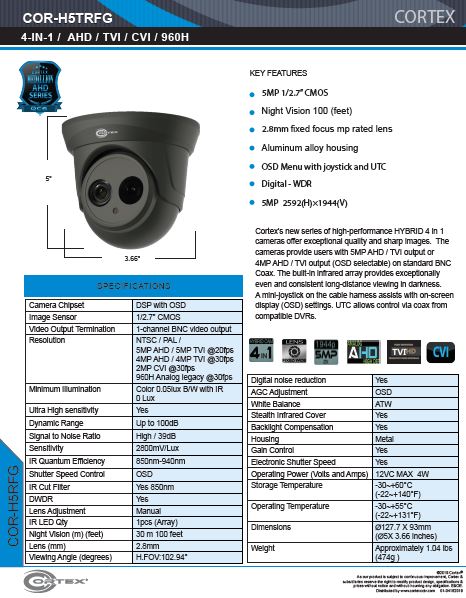

Medallion 5MP Network Camera with IR and 2.8mm wide angle lens

AHD | TVI | CVI | 5MP & 4MP | 2K HD Camera

Dark gray 5MP camera from Cortex. For Coax (BNC) projects. These AHD/TVI outdoor turrets have the Cortex patented Dragonfire infrared illumination system that insures long distance viewing in extreme low light conditions and total darkness. When the project calls for wide angle views or rugged metal housings, these models are ideal. A selectable output and OSD controls via UTC on the DVR interface makes programming fast and easy. CCTV Video changes are easily accessible during installation with the mini-joystick for adjusting the on-screen display (OSD) menu on the cable harness. This provides 2 ways to access the programming menus. Best in class vision is at your fingertips.

Outdoor Rugged metal CCTV turrets from Cortex. These AHD/TVI 5MP camera domes have the Cortex Dragonfire infrared lighting for long distance viewing in total darkness. CCTV Contractors enjoy the OSD controls via UTC on the DVR interface. These 5MP cameras are are a great fit for dark decor and often used in restaurants, night clubs and commercial projects with black ceilings or dark trim finishes. The quick mounting base system with decorative cover is a unique way to quickly mount the camera and adjust for the best viewing angles.

Send Me Prices

Main Features

  • 1/2.7” CMOS CCTV Camera
  • Night Vision 100 (feet)
  • 2.8mm fixed focus mp rated lens
  • IR Cut Filter
  • Features OSD Menu
  • DWDR
  • 5MP 2592(H) × 1944(V)
  • Ultra High sensitivity
  • Includes interline HDR image synthetic algorithm that expands Dynamic Range up to 100dB
  • Stealth Infrared cover for aesthetic style
  • High signal to noise ratio SNR:39dB
  • Sensitivity:2800mV/Lux
  • Min. Illumination: Color 0.05lux B/W with IR 0 Lux
  • Improved infrared quantum efficiency in the range of 850nm-940nm
  • Shutter Speed Control : OSD
  • AGC Adjustment : OSD
  • White Balance : ATW /
  • NTSC / PAL
  • 5MP AHD / 5MP TVI @20fps
  • 4MP AHD / 4MP TVI @30fps
  • 2MP CVI @30fps
  • 960H Analog legacy @30fps
