COR-PS16AC:24VAC Power supply, 16 Channels

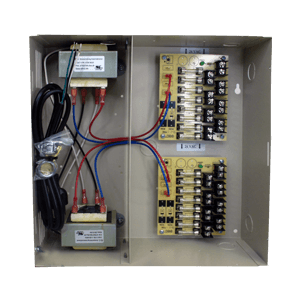

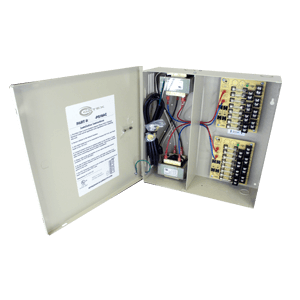

This UL listed wall mount power supply is housed in a metal cabinet. It has sixteen (16) individually fused outputs and status LEDs. The metal cabinet can be locked and has marked knockouts for customization.
24VAC Security Camera Power
This 16-channel DC power supply plugs into a standard North American 110/120VAC wall outlet. It is designed for permanent installation. Maximum power (current) draw for attached devices is 500 mA / channel. Maximum power output, measured as a sum of all 16 channels, is 8 amps.
Use this power supply for CCTV cameras, heaters, and other video accessories. This 24VAC power supply has 16 PTC proctected outputs and is designed for permanent installation. These regulated outputs are PTC protected with surge suppression. Power output fuses are rated @ 500 mA for each channel. This unit will maintains your camera synchronization. It has a strong metal cabinet with knockouts, and can be secured with a barrel-style lock ( included). If you're looking for a wall mounted power supply box for your security camera system , look no further.
High Amp Version Available
If your surveillance network or installation requires more power, we have The COR-PS16ACH. This power supply has a higher AMP rating (16 amps total). Contact your sales representative for details. Or call 1-1-(888)-573-2333 to speak to a sales person.
- Sixteen (16) 24VAC outputs
- 8 amps max. continuous output.
- Each output individually fused
- Output Fuses:500 mA rated, 8 amps total
- LED indicators
- Requires 110/120VAC source
- Higher amperage model available COR-PS16ACH (up to 1A/channel). Contact a sales person for availability and details.
- Dimensions: 304mm x 100mm x 304mm (12" x 4" x 12")
Please contact a Sales Representative for Specification concerning this ACPower Supply as well as prices and availability.
