COR-PS4AC:

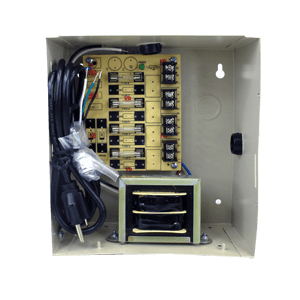

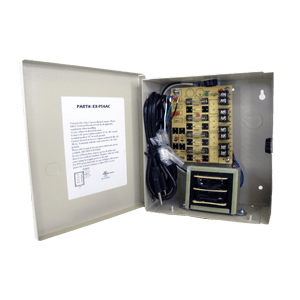

This UL listed wall mount power supply is housed in a metal cabinet. It has four (4) individually fused outputs and a status LED. The metal cabinet can be locked and has marked knockouts for customization.

24VAC Security Camera Power

This 4-channel AC power supply plugs into a standard  North American 110/120VAC wall outlet. It is designed for permanent installation. Maximum power (current) draw is 4.2 amps, measured as a sum of all 4 channels.

Use this power supply for CCTV cameras, heaters, and other video accessories. This 24VAC power supply has 8 PTC proctected outputs and is designed for permanent installation. These regulated outputs are PTC protected with surge suppression. Power output fuses are rated @ 500 mA for each channel. This unit will maintains your camera synchronization. It has a strong metal cabinet with knockouts, and can be secured with a barrel-style lock ( included). If you're looking for a wall mounted power supply box for your security camera system , look no further.

High Amp Version Available

If your surveillance network or installation requires more power, we have The COR-PS8ACH. This power supply has a higher AMP rating. Contact your sales representative for details. Or call 1-(888)-573-2333 to speak to a sales person.

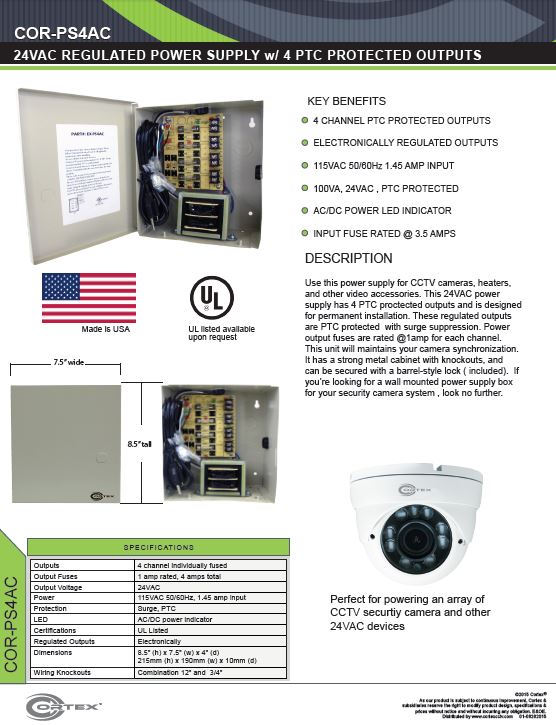

Download Specification Sheet
