Cortex Security with AI Professional Surveillance

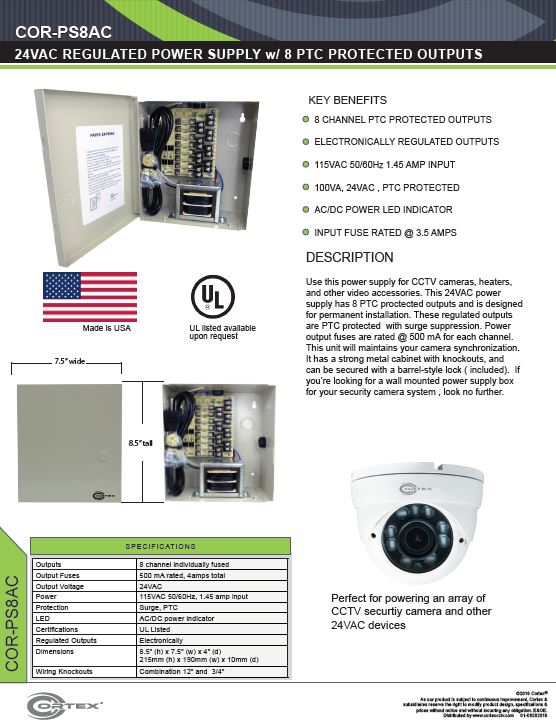

COR-PS8AC

24VaC Power supply,8 Channels

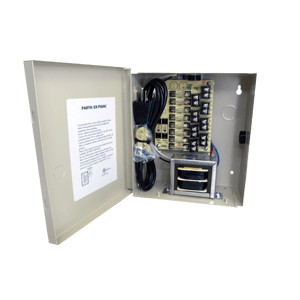

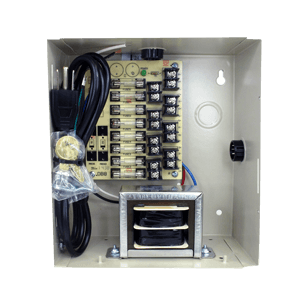

This UL listed wall mount power supply is housed in a metal cabinet. It has eight (8) individually fused outputs and a status LED. The metal cabinet can be locked and has marked knockouts for customization.

24VAC Security Camera Power

This 8-channel AC power supply plugs into a standard  North American 110/120VAC wall outlet. It is designed for permanent installation. Maximum power (current) draw is 4.2 amps, measured as a sum of all 8 channels.

Use this power supply for CCTV cameras, heaters, and other video accessories. This 24VAC power supply has 4 PTC proctected outputs and is designed for permanent installation. These regulated outputs are PTC protected with surge suppression. Power output fuses are rated @1amp for each channel. This unit will maintains your camera synchronization. It has a strong metal cabinet with knockouts, and can be secured with a barrel-style lock ( included). If you're looking for a wall mounted power supply box for your security camera system , look no further.

High Amp Version Available

If your surveillance network or installation requires more power, we have The COR-PS8ACH. This power supply has a higher AMP rating. Contact your sales representative for details. Or call 1-(888)-573-2333 to speak to a sales person.

  • OutputVoltage:24VAC
  • Four (8) 24VAC outputs
  • Each output individually fused
  • Output Fuses:500 mA rated, 4amps total
  • LED indicator
  • Max. 1A/channel output
  • Max. current: 4.2 amps
  • Higher amperage model COR-PS8ACH. Contact a sales person for availability and details.
  • Dimensions: 215mm x 100mm x 190mm (8.5" x 4" x 7.5")

Please contact a Sales Representative for Specification concerning this ACPower Supply as well as prices and availability.
