Cortex Security with AI Professional Surveillance

COR-PS16DC

12VDC Power supply, 16 Channels

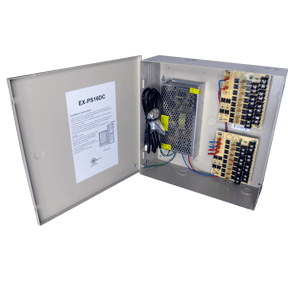

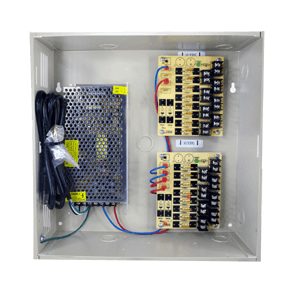

These wall mount power supplies are UL listed and designed for permanent, wall-mount installation.  All output channels are individually fused and have status LEDs.

Regulated 12V Security Camera Power

This 16-channel DC power supply plugs into a standard  North American 110/120VAC wall outlet. It is designed for permanent installation. Maximum power (current) draw is 8 amps, measured as a sum of all 16 channels. A pot. is available so the user can fine-tune the output  voltage (in a range of 11-14VDC, typical).

COR-PS16DCB Battery Backup Power

If your location experiences power failures or is prone to interruptions in the power grid, take a look at our battery backup model of this power supply. The power output profile is the same during normal operation, but we've added an internal battery and maintenance charging circuits so you can operate your equipment in the event of a power failure.

(Please note that since it is impossible for us to know the total current draw of your equipment, we can not list the number of hours of power this supply can provide.)

Use this power supply for CCTV cameras, heaters, and other video accessories. This 12VDC power supply has 16 PTC proctected outputs and is designed for permanent installation. These regulated outputs are PTC protected with surge suppression. Power output fuses are rated @ 500mA amp for each channel. This unit will maintains your camera synchronization. It has a strong metal cabinet with knockouts, and can be secured with a barrel-style lock ( included). If you're looking for a wall mounted power supply box for your security camera system , look no further.

COR-PS16DC12 High Power Model

If your surveillance network draws a lot of current then consider model COR-PS16DC12, a high current version of The COR-PS16DC. The COR-PS16DC12 can supply up to 12 amps.

  • 16 channels
  • 16 Regulated 12VDC outputs
  • Output Fuses:500mA rated, 8 amps total
  • Each output individually fused
  • LED indicator
  • Requires 110/120VAC source
  • Max. current: 8 amps
  • Adjustment pot. on board for fine tuning voltage output.
  • Dimensions: 304mm x 100mm x 304mm (12" x 4" x 12")
  • For critical applications ask for COR-PS16DCB, the same 12VDC power supply with a built-in battery backup system
