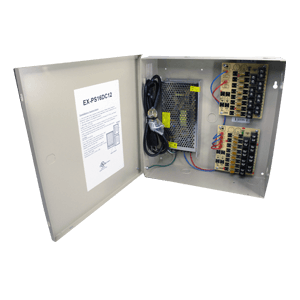

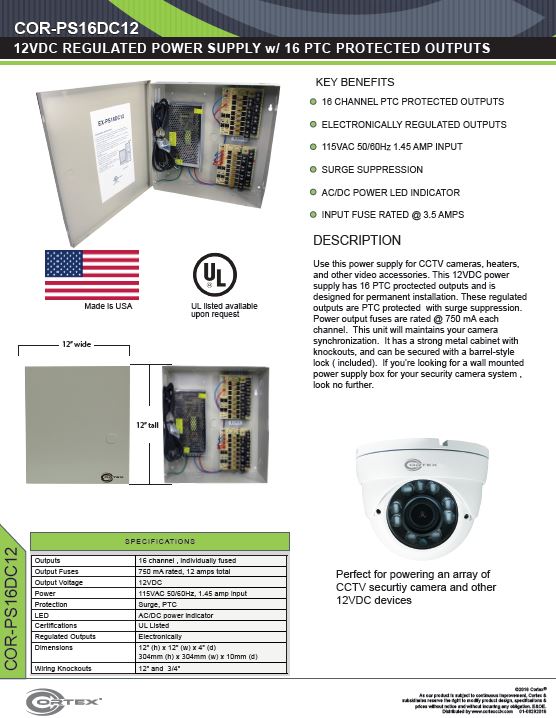

COR-PS16DC12:12VDC Power supply, 16 Channels
These wall mount power supplies are UL listed and designed for permanent, wall-mount installation. All output channels are individually fused and have status LEDs.
Regulated 12V Security Camera Power
This 16-channel DC power supply plugs into a standard North American 110/120VAC wall outlet. It is designed for permanent installation. Maximum power (current) draw is 8 amps, measured as a sum of all 16 channels. A pot. is available so the user can fine-tune the output voltage (in a range of 11-14VDC, typical).
Use this power supply for CCTV cameras, heaters, and other video accessories. This 12VDC power supply has 16 PTC proctected outputs and is designed for permanent installation. These regulated outputs are PTC protected with surge suppression. Power output fuses are rated @ 750 mA each channel. This unit will maintains your camera synchronization. It has a strong metal cabinet with knockouts, and can be secured with a barrel-style lock ( included). If you're looking for a wall mounted power supply box for your security camera system , look no further.
COR-PS16DCB Battery Backup Power
If your location experiences power failures or is prone to interruptions in the power grid, take a look at our battery backup model of this power supply. The power output profile is the same during normal operation, but we've added an internal battery and maintenance charging circuits so you can operate your equipment in the event of a power failure.
(Please note that since it is impossible for us to know the total current draw of your equipment, we can not list the number of hours of power this supply can provide.)
COR-PS16DC12 High Power Model
If your surveillance network draws a lot of current then consider model COR-PS16DC12, a high current version of The COR-PS16DC. The COR-PS16DC12 can supply up to 12 amps.
- 16 channels
- 16 Regulated 12VDC outputs
- Each output individually fused
- Output Fuses:750 mA rated, 12 amps total
- LED indicator
- Requires 110/120VAC source
- Max. current: 8 amps
- Adjustment pot. on board for fine tuning voltage output.
- Dimensions: 304mm x 100mm x 304mm (12" x 4" x 12")
- For critical applications ask for COR-PS16DCB, the same 12VDC power supply with a built-in battery backup system
Please contact a Sales Representative for Specification concerning this DC Power Supply as well as prices and availability.
