COR-PS4DC:

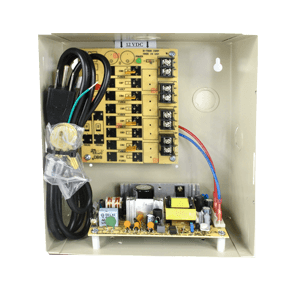

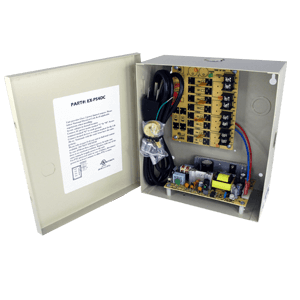

12VDC Power supply, 4 ChannelsThis UL listed wall mount power supply is housed in a metal cabinet. It has four (4) individually fused outputs and a status LED. The metal cabinet can be locked and has marked knockouts for customization.
Regulated 12V Security Camera Power
This 4-channel DC power supply plugs into a standard North American 110/120VAC wall outlet. It is designed for permanent installation. Maximum power (current) draw is 4 amps, measured as a sum of all 4 channels. A pot. is available so the user can fine-tune the output voltage (in a range of 11-14VDC, typical).
Use this power supply for CCTV cameras, heaters, and other video accessories. This 12VDC power supply has 4 PTC proctected outputs and is designed for permanent installation. These regulated outputs are PTC protected with surge suppression. Power output fuses are rated @1amp for each channel. This unit will maintains your camera synchronization. It has a strong metal cabinet with knockouts, and can be secured with a barrel-style lock ( included). If you're looking for a wall mounted power supply box for your security camera system , look no further.
- OutputVoltage:12VDC
- Regulated 12VDC outputs
- Each output individually fused
- Output Fuses:1 amp rated, 4 amps total
- LED indicator
- Requires 110/120VAC source
- Max. current: 4 amps
- Adjustment pot. on board for fine tuning voltage output.
- Dimensions: 247.65mm x 95.25mm x 206.38mm (9.75" x 3.75" x 8.125")
- For critical applications ask for COR-PS4DCB, the same 12VDC power supply with a built-in battery backup system.
Please contact a Sales Representative for Specification concerning this DC Power Supply as well as prices and availability.
