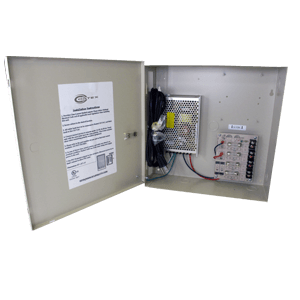

PS4DCH4-Channel 12VDC Power supplies
These wall mount power supplies are UL listed and designed for permanent, wall-mount installation. All output channels are individually fused and have status LEDs.
Regulated 12V Security Camera Power
This 4-channel DC power supply plugs into a standard North American 110/120VAC wall outlet. It is designed for permanent installation. Maximum power (current) draw is 8 amps, measured as a sum of all 4 channels. A pot. is available so the user can fine-tune the output voltage (in a range of 11-14VDC, typical).
Use this power supply for CCTV cameras, heaters, and other video accessories. This 12VDC power supply has 4 PTC proctected outputs and is designed for permanent installation. These regulated outputs are PTC protected with surge suppression.Power output fuses are rated @ 2amps for each channel. This unit will maintains your camera synchronization. It has a strong metal cabinet with knockouts, and can be secured with a barrel-style lock ( included). If you're looking for a wall mounted power supply box for your security camera system , look no further.
COR-PS16DC12 High Power Model
If your surveillance network draws a lot of current then consider model COR-PS16DC12, a high current version of The COR-PS16DC. The COR-PS16DC12 can supply up to 12 amps.
- 4 channels
- 4 Regulated 12VDC outputs
- Each output individually fused
- Output Fuses:2 amps rated, 8 amps total
- LED indicator
- Requires 110/120VAC source
- Max. current: 8 amps
- Adjustment pot. on board for fine tuning voltage output.
- Dimensions: 304mm x 100mm x 304mm (12" x 4" x 12")
