Cortex Security with AI Professional Surveillance

COR-PS8DC:

12VDC Power supply, 8 Channels

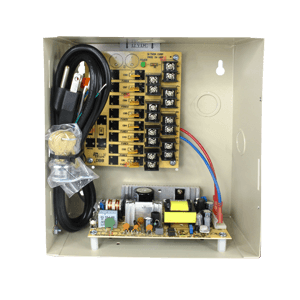

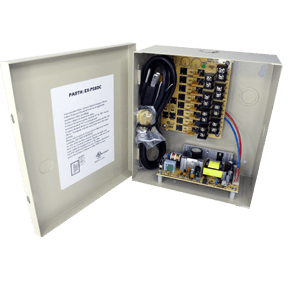

This UL listed wall mount power supply is housed in a metal cabinet. It has eight (8) individually fused outputs and a status LED. The metal cabinet can be locked and has marked knockouts for customization.

Regulated 12V Security Camera Power

This 8-channel DC power supply plugs into a standard  North American 110/120VAC wall outlet. It is designed for permanent installation. Maximum power (current) draw is 4 amps, measured as a sum of all 8 channels. A pot. is available so the user can fine-tune the output  voltage (in a range of 11-14VDC, typical).

Use this power supply for CCTV cameras, heaters, and other video accessories. This 12VDC power supply has 8 PTC proctected outputs and is designed for permanent installation. These regulated outputs are PTC protected with surge suppression. Power output fuses are rated @ 1 amp for each channel. This unit will maintains your camera synchronization. It has a strong metal cabinet with knockouts, and can be secured with a barrel-style lock ( included). If you're looking for a wall mounted power supply box for your security camera system , look no further.

Heavy Duty Power Supply COR-PS8DCH

If your surveillance network draws a lot of current then consider model COR-PS8DCH, a high current version of The COR-PS8DC. The COR-PS8DCH can supply up to 1 Amp on EACH channel.

  • OutputVoltage:12VDC
  • 8 channels
  • 8 Regulated 12VDC outputs
  • Each output individually fused
  • Output Fuses:1 amp rated, 8 amps total
  • LED indicator
  • Requires 110/120VAC source
  • Max. current: 4 amps, measured by summing the total current output on each channel
  • Adjustment pot. on board for fine tuning voltage output.
  • Dimensions: 215mm x 100mm x 190mm (8.5" x 4" x 7.5")
  • For critical applications ask for COR-PS8DCB, the same 12VDC power supply with a built-in battery backup system.
  • Dimensions: 16" x 16" x 5"
    • For high power situations consider The COR-PS8DCH, a high current model capable of delivering 1A current (max.) on EACH channel

      Please contact a Sales Representative for Specification concerning this DC Power Supply as well as prices and availability
