COR-HDA150UTP

This HD-SDI UTP transmitter is a long distance transmission device over 2 wire conductor (we recommend CAT5E/CAT6 twisted pair).

This device transmits the HD-SDI signal up to 500ft over 1 pair UTP cable without using a repeater. Comes in a compact size and provides a terminal block for easy installations.

• Power Input DC12V/0.5A
• Power Consumpiton DC12V/1.3W
• Max.T/D:CAT.5e / 150m Full HD: 1.5G)
• Signal Input BNC_M 75ohms
• Signal Output Terminal Block 2P
• Power Input 2.1mm DC plug
• Operating Temperature -10° C - +50° C /
• Humidity 0 - 80%
• Max. Output Current 1000mA

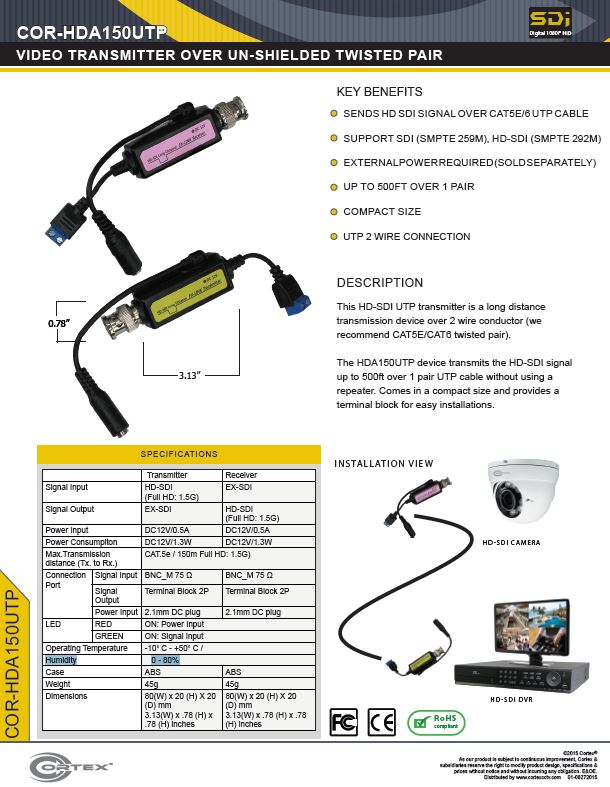

Download a Specification Sheet by clicking the link below.
