SDI CAT5 Extender
HD-SDI CAT5 Extender is a passive device which use in one pair to send HD-SDI signals up to 45m via a CAT6 cable at HD resolution in a point-to-point configuration. The HD-SDI passive CAT5 extender supports un-compressed transmission of up to 1.485G b/s. It is perfect to send HD CCTV over existing CAT5 cable Applications include HD-CCTV,broadcasting, HD camcorder, studio-to-studio, postproduction, live events, medical imaging displays, and medical imaging . etc.
- Video BNC x 1 (75ohms) MALE
- Transmission Interface RJ45 x 1
- RJ45 pin define Pin 7 SDI (+) Pin 8 SDI (-)
- Insert loss 6 dB
- Video Bandwidth 270M b/s 1.485G b/s
- Weight 58(g) 2(ounces)
- Dimensions 1" X 1" x 5.5"(inches)

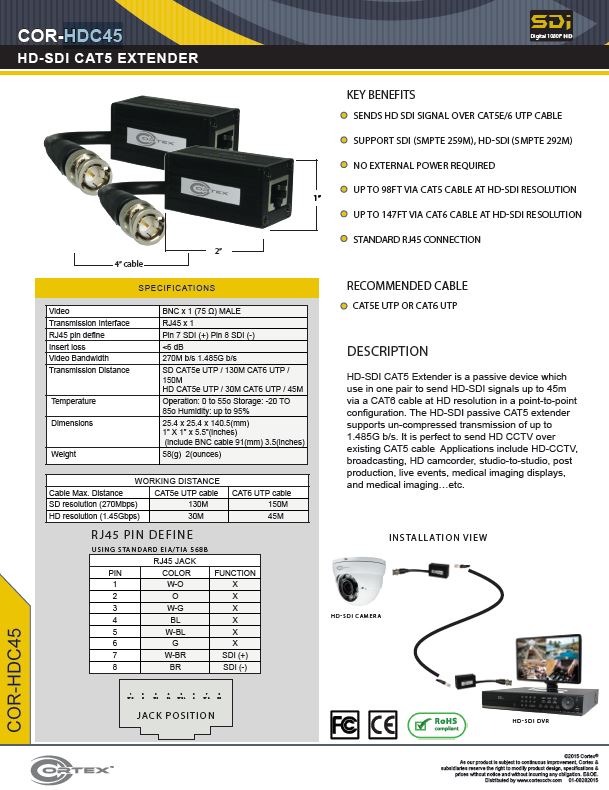

Download a Specification Sheet by clicking the link below.
