3G-SDI / HD-SDI /SD-SDI TO HDMI Converter
COR-HDR1 converts from 3G-SDI, HD-SDI and SD-SDI to HDMI which enabling users to use cost effective HDMI display to SDI based equipment. It also provides 2 channel stereo audio. The application could be using for HD CCTV HD-SDI camera and broadcast video monitoring..
- SDI Input Connector: BNC 75ohms
- SDI Output Connector: BNC 75ohms
- HDMI Output Connector: HDMI Type A
- Power Consumption:750mA (Max)
- Power Supply:Switching DC5V 1AMP
- Power Input 2.1mm DC plug
- Operating Temperature: 0 to 55° Storage: -20 to 85°
- Storage Temperature: -20 to 85°
- Humidity: up to 95%
- Dimensions : 2.6" x 4.3 x 1" (inches)
- Weight:7 Ounces

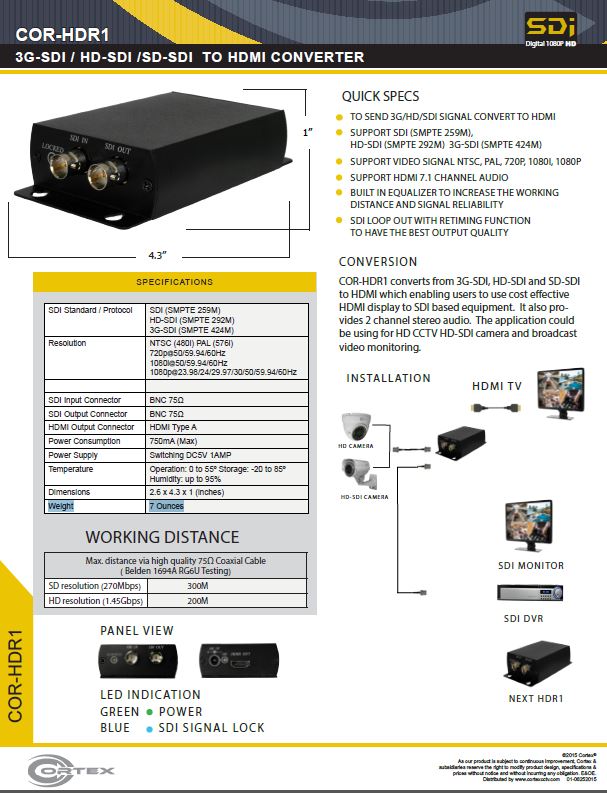

Download a Specification Sheet by clicking the link below.
