24VAC TO 12VDC Power Converter(1000mA Max)
The COR-HDR200 has a built in surge protector, with a light weight, compact size, and is an easy solution for signal boosting.
This HD-SDI distance extension device can extend video transmission up to 950ft (depending on cable quality used).
- Power Input : DC12V/0.5A
- Power Consumpiton: DC12V/1.6W
- Signal Input:HD-SDI
- Signal Output:HD-SDI
- SDI In BNC_F 75ohms
- SDI Out BNC_F 75ohms
- Signal Output Terminal Block 2P
- Power Input 2.1mm DC plug
- Operating Temperature -10° C - +50° C / 14 ° F - +122 ° F
- Humidity 0 - 80%
- Weight:100g / 3.52 ounces

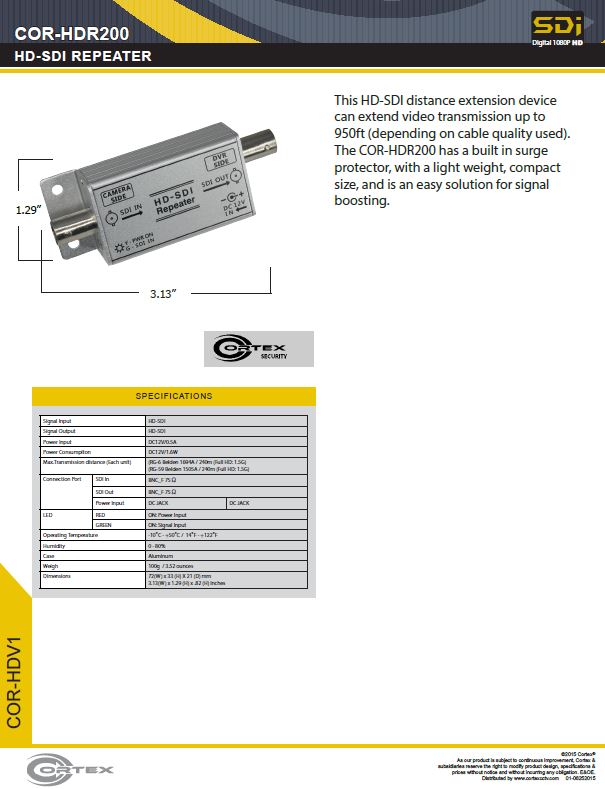

Download a Specification Sheet by clicking the link below.
