The COR-HTBE has a 4"pigtail which allows you to connect cameras to the DVR without space restraints. Boosts video signals up to 980ft (depending on cable quality and video signal) without power. Works with analog and analog high definition signals.
This passive pair balun with built in surge protector offers a convenient and cost effective solution to transmitting video signal over 2 wire conductor (we recommend CAT5E/CAT6 twisted pair).
- Video Input / Output Terminals: BNC-MALE (75ohms 1V p-p)
- Video Output / Input Terminals :Terminal Block
- Bandwidth: 50Hz ~ 60MHz (-3db)
- Transmission distance: HDCVI/AHD : 300M , HD-TVI : 200M
- ESD protection
- Lightning protection
- Surge protection / Attack time :<1 nS
- Humidity:up to 85%
- Storage Temperature: -20° to 85 ° C,
- Operating Temperature:0 ° to 55 ° C,
- Weight: 18g .63ounces

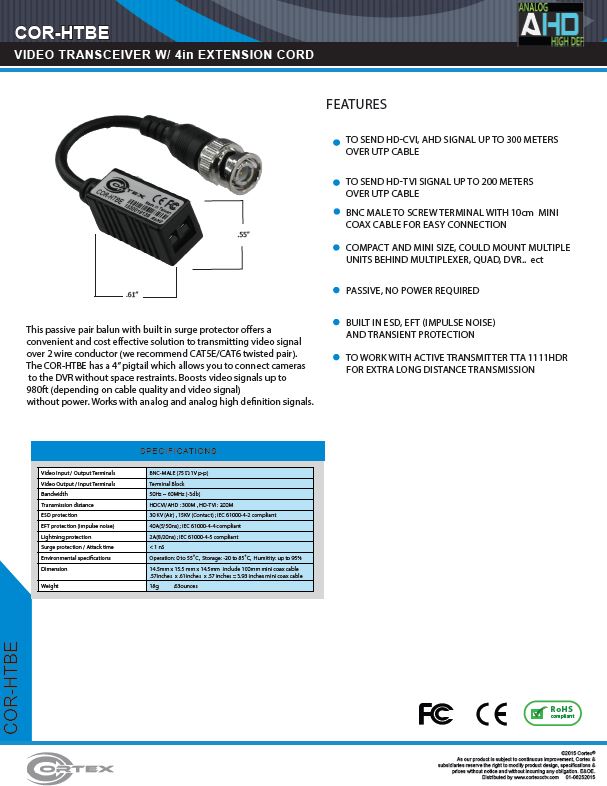

Download a Specification Sheet by clicking the link below.
