Professional Security Surveillance

COR-HTBPK

Video Tranmitter & Receiver with 4" Extension Cord

The COR-HTBPK has built in noise reduction to help boost your video signal without unwanted lines for up to 980ft (depending on cable quality and video signal). Work with Analog and Analog High Definition signals.

This passive pair transceiver & receiver transmits video and power over 2 wire conductor (we recommend CAT5E/CAT6 twisted pair).

  • Video Input / Output Terminals: BNCx1 (1 Vp-p , 75ohms)
  • Video Output / Input Terminals :RJ45 x 1 (100 ohms)
  • Bandwidth: 50Hz ~ 60MHz (-3db)
  • ESD protection
  • EFT protection
  • Lightning protection
  • Surge protection / Attack time :<1 nS
  • Humidity:up to 85%
  • Storage Temperature: -20° to 85 ° C,
  • Operating Temperature:0 ° to 55 ° C,
  • Weight: 45g /1.58 ounces,

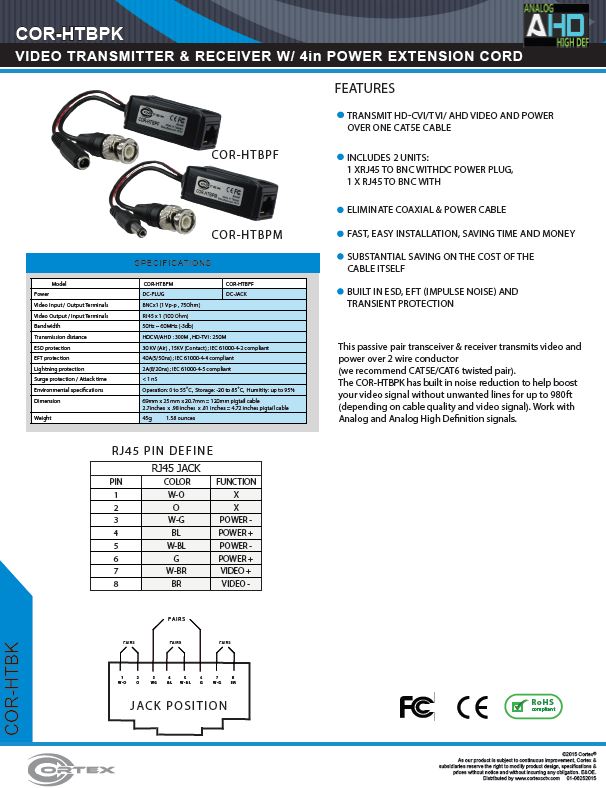

Download a Specification Sheet by clicking the link below.

specifiation sheet download link for the COR-HTBPK Cortex Security quaility video baluns
