Cortex Security with AI Professional Surveillance

COR-554:

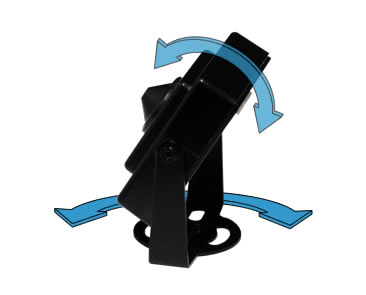

Kit Camera Module with Bracket

Perfect for CCTV Camera Projects

This mini color camera is designed for hidden camera projects. It's an indoor camera, so if you want your kit to go outside you'll need to weatherproof it (doing so will void the warranty of this camera, by the way).

Replaceable Lens

Most of our board cameras feature a removable (and replaceable) lens. Looking for lens options? Click here.

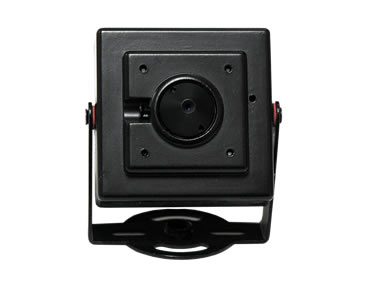

An COR-554P is shown at left. It comes equipped with a 3.6mm pinhole style lens.

The COR-554 has a regular, non-pinhole lens.

Aside from the difference in the lens, both models are identical.

Please contact a Sales Representative for Specification concerning this board camera product as well as prices and availability.

  • 1/4" color DSP CCD video sensor
  • 3.6mm wide angle lens
  • 420 horizontal TV lines
  • Effective pixels:
    • NTSC: 512 x 492 (251k)
    • PAL: 512 x 582 (297k)
  • Minimum illumination 0.3 Lux
  • Auto-electronic shutter
  • Auto-white balance
  • Power: 12VDC (110mA) (Regulated power supply recommended for best results.)

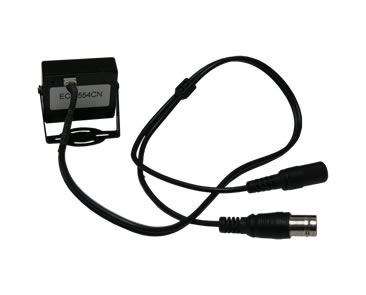

  • Attached power/video cables included.
  • Available with pinhole lens (COR-554P).
  • Available with conical pinhole lens and a Sony video sensor (COR-554CN).
