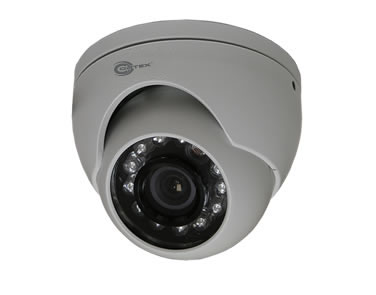

COR-555ES:Mighty Mini Turret with High Resolution, WDR, & OSD Menu
The Mighty Mini camera series incorporates advanced video processing functions that lift traditional CCTV video technology to a new level. Each member of this product line provides the user with crystal clear video images that can be modified using a variety of techniques.
This mini dome, while measuring only 2.75-inches in diameter, does the work of it's larger cousins and in some cases easily out-performs them.
Super Mini Dome with OSD Menu

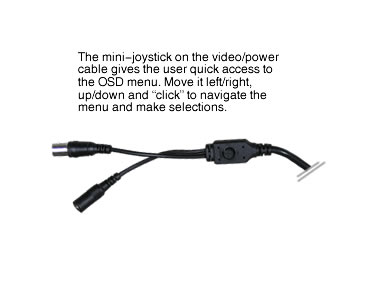

Users and installers alike will appreciate the on-screen display (OSD) menu. Image enhancement selections, courtesy of a Gen III video processing system, are easy to configure. For a full discussion and explanation of all selections, and how to navigate through the OSD menu, click here.
We've added some additional options to make setup easy, since we know the wealth of features sometimes gets in the way. Noteworthy is one specific action that takes place when you reset the camera - PrePro.
PrePro Saves Time & Money
OSD menu cameras can sometimes require the installer to spend several minutes adjusting, testing, and re-adjusting the camera. This eats up time. This can be daunting and expensive (time=money) when faced with numerous cameras, PrePro (Pre-Programmed by Professionals) helps you out.
When you reset the camera, PrePro kicks in. It's automatic. All options are set to optimum with PrePro. (This camera is also set to PrePro straight out of the box.)
PrePro works by setting shutter, noise reduction, gain, color, and all other options for best picture in the widest range of surveillance environments. If you adjust settings, or find someone else has adjusted settings, and the result is a bad picture, simply reset the camera. Check the image again and it is likely near perfect - or so close that it's good to go or needs minimum tweaking.
Compare Dome Cameras
Not sure which dome camera model will fit your needs best?Check out our Dome Comparison Chart, which shows all of our dome camera models.
- 1/3" color CCD video sensor
- 600+ TV line resolution
- Infrared: 850nm, 25'+ range
- Effective pixels:
- NTSC: 768 x 494 (379k)
- PAL: 752 x 582 (437k)
- 3.6mm ground glass lens
- Easy to use OSD menu
- Privacy masking (OSD)
- Motion detection (OSD)
- Day/Night operation (OSD)
- Wide Dynamic Range (OSD)
- Noise reduction (OSD)
- White balance options (OSD)
- High light compensation for masking sources of bright light (OSD)
- 3D orbital bracket allows mount on vertical, horizontal or oblique surface
- Mounting kit included
- Power: 12VDC with higher voltage tolerance
- Multilingual: English, Chinese
- Tough all metal anti-vandal case

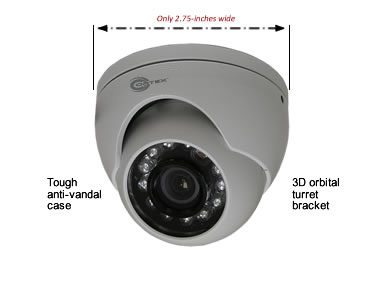

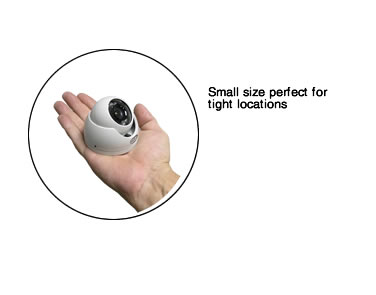

- Small size (2.75" across)
- Waterproof rated IP68
- PrePro at Reset and out-of-the-box
- Colors: IVORY
- For more information about the OSD and a full explanation of each setting, click here.

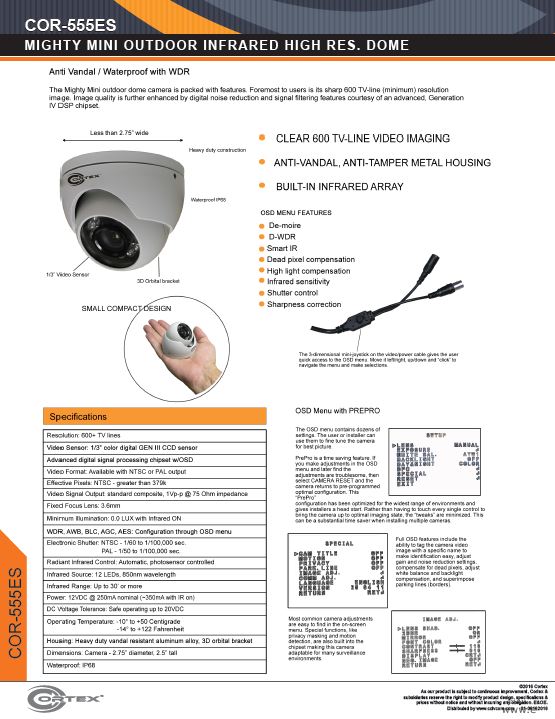

Click to download
