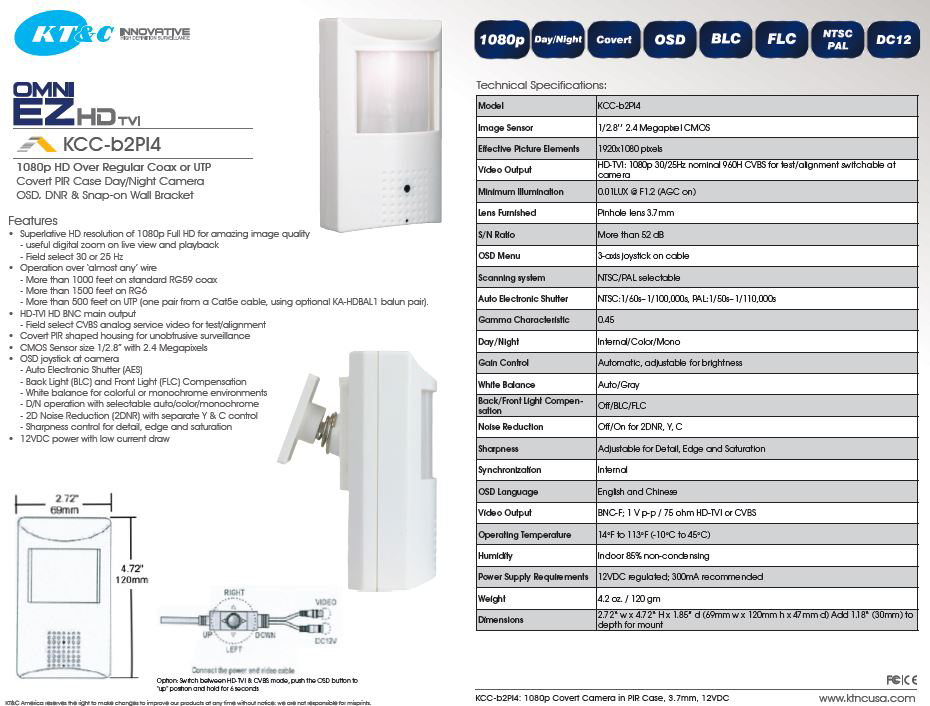

KT-b2PI4

1080p Indoor PIR Camera

HD-TVI & HD | COVERT:

Superlative HD resolution of 1080p Full HD for amazing image quapty

Operation over ?almost any? wire

HD-TVI HD BNC main output

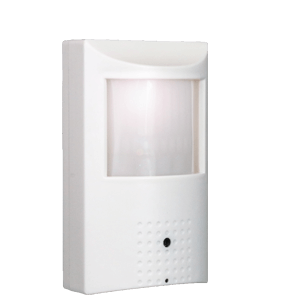

Covert PIR shaped housing for unobtrusive surveillance

CMOS Sensor size 1/2.8? with 2.4 Megapixels

OSD joystick at camera

Superlative HD resolution of 1080p Full HD for amazing image quality
- useful digital zoom on live view and playback
- Field select 30 or 25 Hz
Operation over ?almost any? wire
- More than 1000 feet on standard RG59 coax
- More than 1500 feet on RG6
- More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair).
HD-TVI HD BNC main output
- Field select CVBS analog service video for test/alignment
Covert PIR shaped housing for unobtrusive surveillance
CMOS Sensor size 1/2.8? with 2.4 Megapixels
OSD joystick at camera
- Auto Electronic Shutter (AES)
- Back Light (BLC) and Front Light (FLC) Compensation
- White balance for colorful or monochrome environments
- D/N operation with selectable auto/color/monochrome
- 2D Noise Reduction (2DNR) with separate Y & C control
- Sharpness control for detail, edge and saturation
12VDC power with low current draw

Model - KT-b2PI4
Image Sensor - 1/2.8?? 2.4 Megapixel CMOS
Effective Picture Elements - 1920x1080 pixels
Video Output - HD-TVI: 1080p 30/25Hz nominal 960H CVBS for test/alignment switchable at camera
Minimum Illumination - 0.01LUX @ F1.2 (AGC on)
Lens Furnished - Pinhole lens 3.7mm
S/N Ratio - More than 52 dB
OSD Menu - 3-axis joystick on cable
Scanning system - NTSC/PAL selectable
Auto Electronic Shutter - NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s
Gamma Characteristic - 0.45
Day/Night - Internal/Color/Mono
Gain Control - Automatic, adjustable for brightness
White Balance - Auto/Gray
Back/Front Light Compensation - Off/BLC/FLC
Noise Reduction - Off/On for 2DNR, Y, C
Sharpness - Adjustable for Detail, Edge and Saturation
Synchronization - Internal
OSD Language - English and Chinese
Video Output - BNC-F; 1 V p-p / 75 ohm HD-TVI or CVBS
Operating Temperature - 14?F to 113?F
Humidity - Indoor 85% non-condensing
Power Supply Requirements - 12VDC regulated; 300mA recommended
Weight - 4.2 oz.
Dimensions - 2.72? w x 4.72? H x 1.85? d (69mm w x 120mm h x 47mm d) Add 1.18? (30mm) to depth for mount
