Cortex Security with AI Professional Surveillance

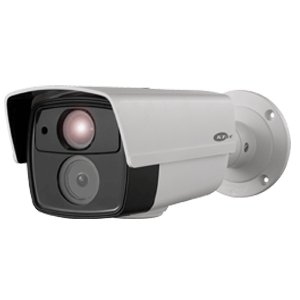

KT-c2BR28V12XIR

1080p HD-TVI Outdoor Bullet with IR

Omni IP "hand free" Plug-and-Play system:

Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom

HD-TVI HD BNC output, plus CVBS analog BNC output

Operation over ?almost any? wire
- Up to 1500 feet on standard RG59 coax; longer distances on RG6
- Up to 500? on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).

1/3? progressive scan CMOS sensor with .01 lux native light sensitivity

120dB Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions

Digital slow shutter (Sens-Up) low light enhancement (Use of more than 2~4X enhancement should be limited to select applications.)

True Day/Night zero light operating range of 164 feet or more (depending on scene reflectivity) from Super Beam IR LED

Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots

Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting

Simple and easy to use OSD setup menu
- Local 5-axis joystick inside access cover
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron? control equipment)
- Digital Wide Dynamic Range for bright or unbalanced scenelighting conditions
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D + 2D Noise Reduction to increase low light picture clarity andconserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery

2.8~12mm F=1.4 Varifocal 3 Megapixel lens to capture the desired field of view (92?~38? FOV)

12VDC operation with low (under 600mA) current draw

IP66weather resistant, vandal resistant construction

Operating temperature range of -4?F~140?F

CVBS Service Video output for convenient installation, and ease of service

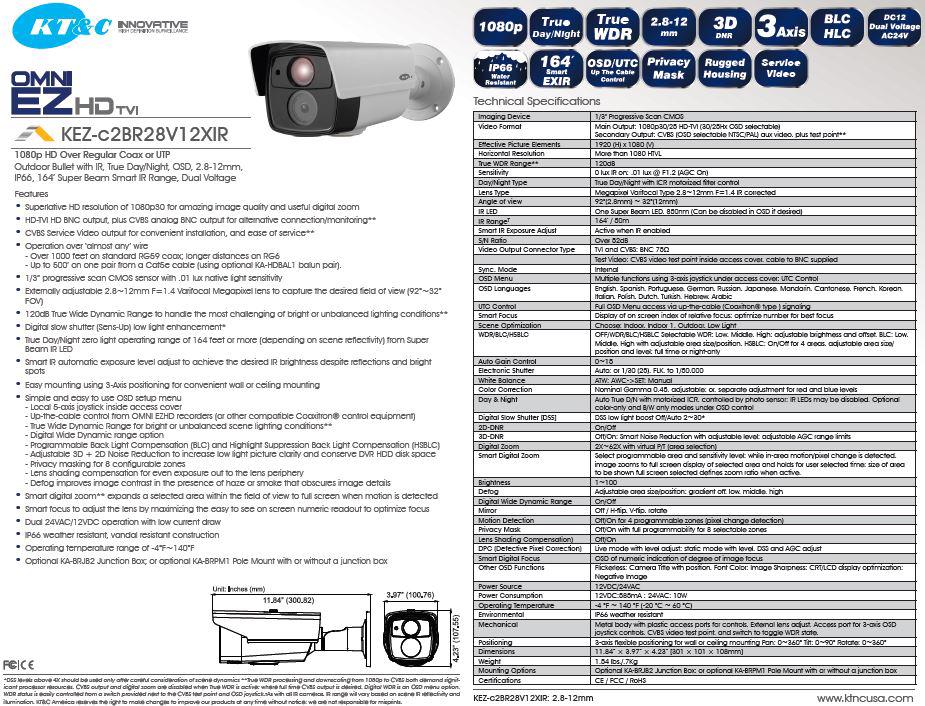

  • Imaging Device - 1/3" Progressive Scan CMOS
  • Video Format - Main Output: 1080p30/25 HD-TVI (30/25Hx OSD selectable) Secondary Output: CVBS (OSD selectable NTSC/PAL) aux video**
  • Effective Picture Elements - 1920 (H) x 1080 (V)
  • Horizontal Resolution - More than 1080 HTVL
  • True WDR Range** - 120dB
  • Sensitivity - 0 lux IR on; .01 lux @ F1.2 (AGC On)
  • Day/Night Type - True Day/Night with ICR motorized filter control
  • Lens Type - Megapixel Varifocal Type 2.8~12mm F=1.4 IR corrected
  • Angle of view - 92?(2.8mm) ~ 32?(12mm)
  • IR LED - One Super Beam LED, 850nm (Can be disabled in OSD if desired)
  • IR Range? - 164? / 50m
  • Smart IR Exposure Adjust - Active when IR enabled
  • S/N Ratio - Over 52dB
  • Video Output Connector Type - TVI and CVBS: BNC 75O, Test Video: CVBS video test point inside access cover, cable to BNC supplied
  • Sync. Mode - Internal
  • OSD Menu - Multiple functions using 3-axis joystick under access cover; UTC Control
  • OSD Languages - English, Spanish, Portuguese, German, Russian, Japanese, Mandarin, Cantonese, French, Korean, Italian, Polish, Dutch, Turkish, Hebrew, Arabic
  • Scene Optimization - Choose: Indoor, Indoor 1, Outdoor, Low Light
  • UTC Control - Full OSD Menu access via up-the-cable (Coaxitron type ) signaling
  • Smart Focus - Display of on screen index of relative focus; optimize number for best focus
  • WDR/BLC/HSBLC - OFF/WDR/BLC/HSBLC Selectable, WDR: Low, Middle, High; adjustable brightness and offset, BLC: Low, Middle, High with adjustable area size/position, HSBLC: On/Off for 4 areas, adjustable area size/ position and level; full time or night-only
  • Auto Gain Control - 0~15
  • Electronic Shutter - Auto; or 1/30 (25), FLK, to 1/50,000
  • White Balance - ATW; AWC->SET; Manual
  • Color Correction - Nominal Gamma 0.45, adjustable; or, separate adjustment for red and blue levels
  • Day & Night - Auto True D/N with motorized ICR, controlled by photo sensor; IR LEDs may be disabled, Optional color-only and B/W only modes under OSD control
  • Digital Slow Shutter [DSS] - DSS low light boost Off/Auto 2~30*
  • 2D-DNR - On/Off
  • 3D-DNR - Off/On: Smart Noise Reduction with adjustable level; adjustable AGC range limits
  • Digital Zoom - 2X~62X with virtual P/T (area selection)
  • Smart Digital Zoom - Select programmable area and sensitivity level; while in-area motion/pixel change is detected, image zooms to full screen display of selected area and holds for user selected time; size of area to be shown full screen selected defines zoom ratio when active
  • Brightness - 1~100
  • Defog - Adjustable area size/position; gradient off, low, middle, high
  • Digital Wide Dynamic Range - On/Off
  • Mirror/Flip - Off / H-flip, V-flip, rotate
  • Motion Detection - Off/On for 4 selectable zones
  • Privacy Mask - Off/On for 8 selectable zones
  • Lens Shading Compensation) - Off/On
  • DPC (Defective Pixel Correction) - Live mode with level adjust; static mode with level, DSS and AGC adjust
  • Smart Digital Focus - OSD of numeric indication of degree of image focus
  • Other OSD Functions - Flickerless; Camera Title with position, Font Color; Image Sharpness; CRT/LCD display optimization; Negative Image
  • Power Source - 12VDC/24VAC
  • Power Consumption - 12VDC:585mA ; 24VAC: 10W
  • Operating Temperature - -4 ?F ~ 140 ?F (-20 ?C ~ 60 ?C)
  • Environmental - IP66 weather resistant
  • Mechanical - Metal body with plastic access ports for controls, External lens adjust, Access port for 3-axis OSD joystick controls, CVBS video test point, and switch to toggle WDR state
  • Positioning - 3-axis flexible positioning for wall or ceiling mounting, Pan: 0~360? Tilt: 0~90? Rotate: 0~360?
  • Dimensions - 11.84? ? 3.97? ? 4.23? [301 ? 101 ? 108mm]
  • Weight - 1.54 lbs./.7Kg
  • Mounting Options - Optional KA-BRJB2 Junction Box; or optional KA-BRPM1 Pole Mount with or without a junction box
  • Certifications - CE / FCC / RoHS
