Cortex Security with AI Professional Surveillance

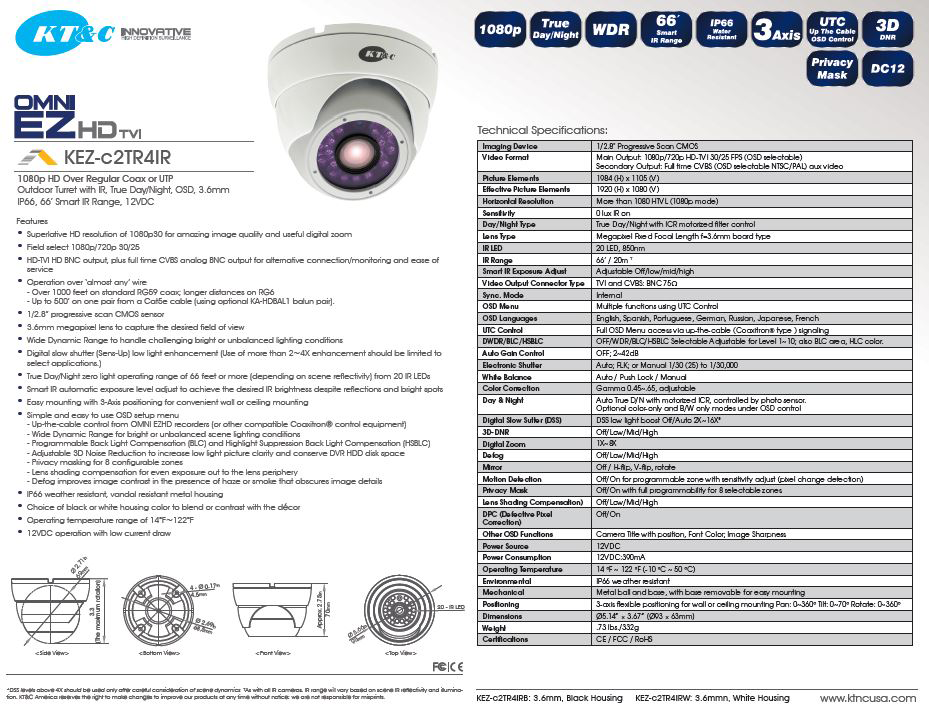

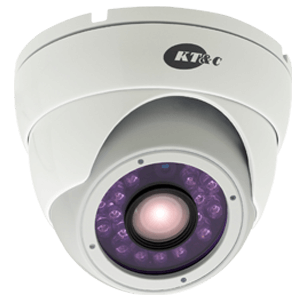

KT-c2TR4IR

1080p HD-TVI Outdoor Turret

Omni EZ HD-TVI Casino Grade

Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom

Field select 1080p/720p 30/25

HD-TVI HD BNC output, plus full time CVBS analog BNC output for alternative connection/monitoring and ease of service

Operation over ?almost any? wire
- Over 1000 feet on standard RG59 coax; longer distances on RG6
- Up to 500? on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).

1/2.8? progressive scan CMOS sensor

3.6mm megapixel lens to capture the desired field of view

Wide Dynamic Range to handle challenging bright or unbalanced lighting conditions

Digital slow shutter (Sens-Up) low light enhancement (Use of more than 2~4X enhancement should be limited to select applications.)

True Day/Night zero light operating range of 66 feet or more (depending on scene reflectivity) from 20 IR LEDs

Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots

Easy mounting with 3-Axis positioning for convenient wall or ceiling mounting

Simple and easy to use OSD setup menu
- Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron? control equipment)
- Wide Dynamic Range for bright or unbalanced scene lighting conditions
- Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
- Adjustable 3D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
- Privacy masking for 8 configurable zones
- Lens shading compensation for even exposure out to the lens periphery
- Defog improves image contrast in the presence of haze or smoke that obscures image details

IP66 weather resistant, vandal resistant metal housing

Choice of black or white housing color to blend or contrast with the d?cor

Operating temperature range of 14?F~122?F

12VDC operation with low current draw

  • Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom
  • Field select 1080p/720p 30/25
  • HD-TVI HD BNC output, plus full time CVBS analog BNC output for alternative connection/monitoring and ease of service
  • Operation over almost any wire
    • Over 1000 feet on standard RG59 coax; longer distances on RG6
    • Up to 500 on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).
  • 1/2.8" progressive scan CMOS sensor
  • 3.6mm megapixel lens to capture the desired field of view
  • Wide Dynamic Range to handle challenging bright or unbalanced lighting conditions
  • Digital slow shutter (Sens-Up) low light enhancement (Use of more than 2~4X enhancement should be limited to select applications.)
  • True Day/Night zero light operating range of 66 feet or more (depending on scene reflectivity) from 20 IR LEDs
  • Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots
  • Easy mounting with 3-Axis positioning for convenient wall or ceiling mounting
  • Simple and easy to use OSD setup menu
    • Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron control equipment)
    • Wide Dynamic Range for bright or unbalanced scene lighting conditions
    • Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
    • Adjustable 3D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
    • Privacy masking for 8 configurable zones
    • Lens shading compensation for even exposure out to the lens periphery
    • Defog improves image contrast in the presence of haze or smoke that obscures image details
  • IP66 weather resistant, vandal resistant metal housing
  • Choice of black or white housing color to blend or contrast with the dcor
  • Operating temperature range of 14F~122F
  • 12VDC operation with low current draw
